Fluke TL175E Test Lead, CAT II, CAT III, 10A, Щупы для мультиметра

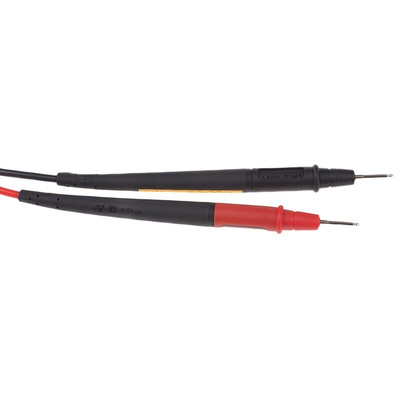

Fluke TP175 and TL175 TwistGuard Test Probes

Brought to you by Fluke, TwistGuard Test Leads are the only test leads available with adjustable length test tips for use in different measurement environments. Twisting the test lead changes the exposed probe tip length from 19 mm to 4 mm. All models are highly reliable and excellent quality.

Features & Benefits

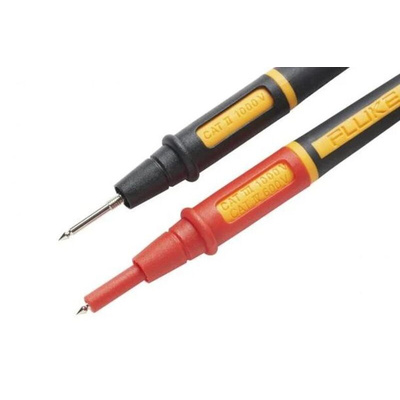

• Patented twist top test probes to extend or reduce tip exposure
• Probes always show correct category rating for tip exposure being used
• Includes removable 4 mm lantern tips
• Compatible with all instruments that accept standard 4 mm shrouded banana plugs
• EN61010-031 safety ratings CAT III 1000 V, CAT IV 600 V, CAT II 1000 V, 10 A max

What are test leads?

These leads are connecting cables which are used specifically for Multimeters, attaching a test probe to the end will allow the user to measure the required voltage, current or electrical resistance. As it assists operation with a multimeter, at least two of these types of electrical values are measured.

What are test probes?

Connecting to Fluke multimeters, a set of test probes will measure the device or target for an accurate reading, such as voltage or current. Due to the flexibility and quality produced by Fluke, each probe provides much-needed precision.

Standards

EN61010-031

FLUKE Multimeter Leads, Test Lead Type, 10A Current Rating - TL175E

In need of multitasking testing leads that can easily be adapted for different applications? These TwistGuard multimeter leads from FLUKE are reliable all-rounders. With a quick turn, you can change the exposed probe tip length from 4 up to 19mm. A contrasting inner cable colour lets you know when to replace the product, so there's no need for wear and tear to jeopardise safety. As they've been tested for strain relief to over 30,000 bends without any problems, you can rest assured that these leads are built to work as hard as you do.

Features & Benefits

• Cable's 1.2m length gives plenty of reach when testing, without pulling on the multimeter
• Standard 4mm banana plugs for compatibility with most FLUKE multimeters
• Double-insulated silicone housing for flexibility in cold temperatures

Applications

• Energy sector
• Telecommunications industry
• Manufacturing equipment
• Electronic testing

What are the benefits of the TwistGuard design?

The TwistGuard design lets you quickly swap between tip lengths by simply twisting the head. You can retract the tip length to prevent accidental contact with energised surfaces in industrial settings. It's also possible to extend the tip when you need to access hard-to-reach areas.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Supplied with
type":"Supplied with",

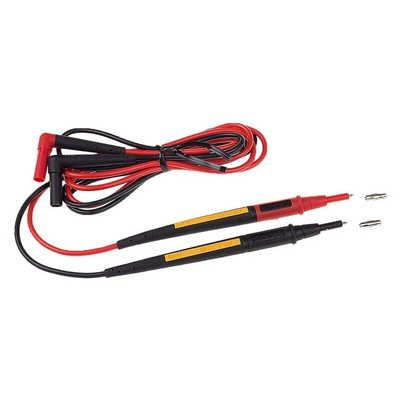

1.2m silicone test leads with lead wear indication

TwistGuard Premium Test Leads

Instruction Sheet - TL175
