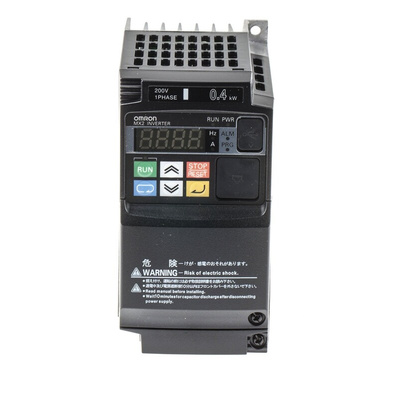

3G3MX2AB004ECHN, Omron Inverter Drive, 0.4 kW, 1 Phase, 230 V ac, 3.0 A, MX2 Series

Omron MX2 Single and Three Phase Input

Specifically created for your application, the MX2 was developed to harmonise advanced motor and machine control. Thanks to its fast CPU’s and advanced algorithms the MX2 provides smooth control down to zero speed, plus precise operation for fast cyclic operations and torque control capability in open loop.

Features and benefits

Up to 15 kW
200% starting torque and torque control in open loop
Double rating VT 120%/1min and CT 150%/1min
IM & PM Motor control
Safety conforming to ISO13849-1 Category3 performance level PLD
Logic programming
Current vector control
High starting torque: 200% at 0.5Hz
Double rating VT 120%/1min and CT 150%/1min
Speed range up to 1000 Hz
Torque control in open loop vector
Positioning functionality
Built-in application functionality (i.e. Brake control)
User programmable as standard
Safety embedded compliant with ISO13849-1 (double input circuit and external device monitor EDM)
USB port for PC programming
24 Vdc backup supply for control board
Fieldbus communications: Modbus, DeviceNet, Profibus, Componet, Ethercat, ML-II and CanOpen

OMRON Inverter Drive, 400Hz Maximum Output Frequency, IP20 Rating - 3G3MX2 Series - 3G3MX2AB004ECHN

When precision matters, get total control over your machinery with the help of this inverter drive from OMRON. It sits between your electrical supply and motor, regulating power, positioning and speed according to programmed inputs. The built-in control panel makes it easy to adjust parameters in a flash. A speed range of up to 1000Hz means this inverter is suitable for fast-paced appliances including AC-powered industrial motors and fans. With a high starting torque of 200% at 0.5Hz, it generates plenty of drive right off the bat.

Features & Benefits

• IP20 rating indicates it's touch-proof and protected against dust and small objects
• 230V AC supply voltage makes it compatible with standard power supplies
• Comes with a USB port for fuss-free PC programming
• Open-loop vector control means you can manage speed and torque individually
• Performs reliably in a broad ambient temperature range between -10°C and +50°C

Applications

• Warehouse automation
• Packaging facilities
• Food and beverage production

What size is this inverter drive?

The unit is 128 (L) x 68 (W) x 123mm (D), making it a compact choice that fits neatly into your automated system.

Omron MX2 range

The MX2 is specifically designed to drive machines. It has been developed to harmonise advanced motor and machine control. Thanks to its advanced design and algorithms the MX2 provides smooth control down to zero speed, plus precise operation for fast cyclic operations and torque control capability in open loop. The MX2 also gives you comprehensive functionality for machine control such as positioning, speed synchronisation and logic programming. The MX2 is fully integrated within the Omron smart automation platform.
