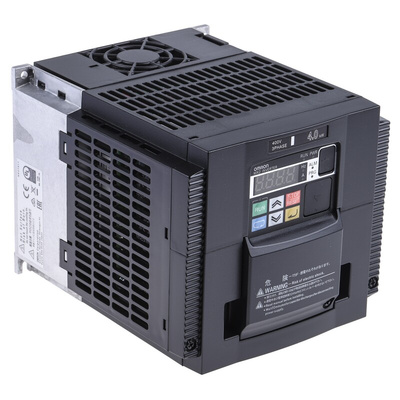

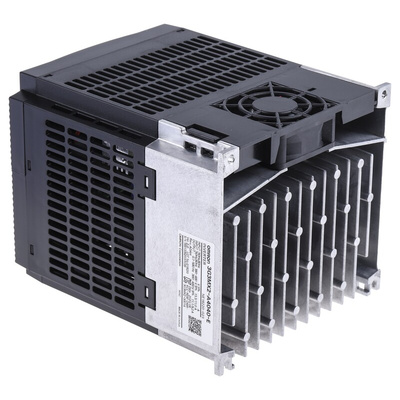

3G3MX2A4040ECHN, Omron Inverter Drive, 4 kW, 3 Phase, 400 V ac, 9.2 A, 3G3MX2 Series

Omron MX2 Single and Three Phase Input

Specifically created for your application, the MX2 was developed to harmonise advanced motor and machine control. Thanks to its fast CPU’s and advanced algorithms the MX2 provides smooth control down to zero speed, plus precise operation for fast cyclic operations and torque control capability in open loop.

Features and benefits

Up to 15 kW
200% starting torque and torque control in open loop
Double rating VT 120%/1min and CT 150%/1min
IM & PM Motor control
Safety conforming to ISO13849-1 Category3 performance level PLD
Logic programming
Current vector control
High starting torque: 200% at 0.5Hz
Double rating VT 120%/1min and CT 150%/1min
Speed range up to 1000 Hz
Torque control in open loop vector
Positioning functionality
Built-in application functionality (i.e. Brake control)
User programmable as standard
Safety embedded compliant with ISO13849-1 (double input circuit and external device monitor EDM)
USB port for PC programming
24 Vdc backup supply for control board
Fieldbus communications: Modbus, DeviceNet, Profibus, Componet, Ethercat, ML-II and CanOpen

Omron 3G3MX2 Inverter Drive, Profibus, IP20 - 3G3MX2A4040ECHN

This is specifically designed for various applications, harmonizing advanced motor and machine control. Its fast CPU and advanced algorithms ensure smooth control down to zero speed, precise operation for fast cyclic tasks, and torque control capability in open loop.

Features & Benefits

• The 4kW power rating provides ample power for driving motors in industrial applications
• Suitable for three-phase power supply systems
• Compatible with standard 400 V ac power sources
• IP Rating of IP20 ensures protection against dust and solid objects
• Output Frequency of 400 Hz allows precise control over motor speed
• STO (Safe Torque Off) enhances safety by disabling torque output during emergency situations

Applications

• Used in conveyor systems, packaging lines, and assembly processes
• Ensures efficient heating, cooling, and ventilation in buildings
• Suitable for monitoring material flow and positioning

What is the power rating of the 3G3MX2A4040ECHN?

The power rating is 4 kW.

Can I use it for both heating and cooling applications?

Yes, the drive supports both heat and cool control.

Is it suitable for outdoor use?

The 3G3MX2A4040ECHN is designed for indoor use.

What type of output does it provide?

The drive features a PNP output.

Does it support field bus communication?

Yes, it supports Profibus communication.

Omron MX2 range

The MX2 is specifically designed to drive machines. It has been developed to harmonise advanced motor and machine control. Thanks to its advanced design and algorithms the MX2 provides smooth control down to zero speed, plus precise operation for fast cyclic operations and torque control capability in open loop. The MX2 also gives you comprehensive functionality for machine control such as positioning, speed synchronisation and logic programming. The MX2 is fully integrated within the Omron smart automation platform.
