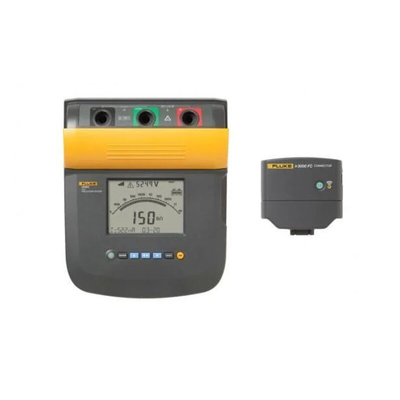

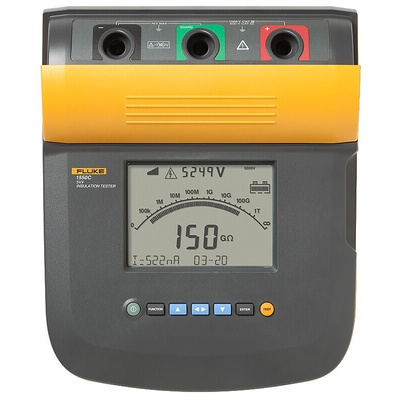

Fluke 1550, 1555 5kV and 10kV Insulation Tester
High voltage insulation tester ideal for testing high voltage equipment including switchgear, motors, generators and cables.
Meets requirements of IEEE 43-2000
Capacitance and leakage current measurement
Resistance measurements up to 2TΩ (Fluke 1555)
Ramp function for breakdown testing
Voltage breakdown detection alerts and voltage reading up to 600 V ac or dc for increased user safety
99 measurements storage and recall and PC interface
Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI)
Timer settings up to 99 minutes for timed tests
Guard system eliminates the effect of surface leakage current on high-resistance measurements
Large LCD display with analogue bargraph
Long life lead acid battery with over 750 tests between charges
EN 61010 safety rating CAT IV 1000 V, CAT III 1000 V

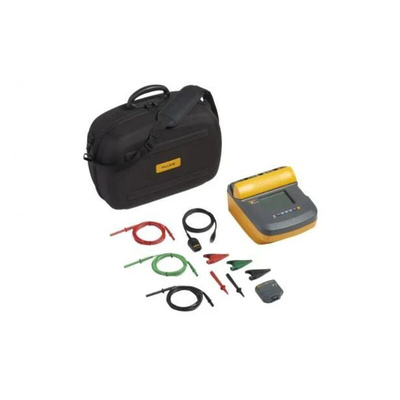

Supplied with
Test cables & crocodile clips, infrared USB adaptor, AC power cord, 12V lead acid battery (fitted), FlukeView Forms Basic Software, user manual on CD-ROM, soft carrying case (Fluke 1555 only)
Fluke 1550 & 1555 kits include: IP67 hard case, NIST traceable certificate of calibration and additional ruggedized crocodile clips
Fluke Insulation Resistance Tester
The Fluke 1T ohm insulation tester is a perfect tool for preventive or predictive maintenance programs. It is designed to identify potential equipment failures before they occur. Remote operation lets you spend as little time as possible in potentially hazardous zones. It is a high voltage insulation tester, ideal for testing high voltage equipment including switchgear, motors, generators and cables. The testing voltage ranges between 250V and 5000V. This device is Rechargeable Lead Acid (Yuasa NP2.8-12) battery-powered.
Supplied with test cables & crocodile clips, infrared USB adaptor, AC power cord, 12V lead acid battery (fitted), FlukeView Forms Basic Software, user manual on CD-ROM
Fluke 1550 & 1555 kits include IP67 hard case, NIST traceable certificate of calibration and additional ruggedized crocodile clips.
Features and Benefits
99 measurements storage and recall and PC interface
Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI)
Capacitance and leakage current measurement
Guard system eliminates the effect of surface leakage current on high resistance measurements
Large LCD display with analogue bar graph
Long life lead acid battery with over 750 tests between charges
Ramp function for breakdown testing
Timer settings up to 99 minutes for timed tests
Voltage breakdown detection alerts and voltage reading up to 600VAC or DC for increased user safety
Certifications
CAT III 1000V
CAT IV 1000V
CE certified
CSA certified
EN 61010 safety rating
IEEE 43-2000
IP40 rated
Fluke 1555 and 1550C Insulation Resistance Testers Technical Data
Contains SVHC - Lead - CAS No. 7439-92-1
