270200810, Rose Plastic Hookset with Magnet for Use with Beluga 180/220or Beluga, 30 x 8 x 65mm

Beluga Model 180 G ExB Explosion Protection Hand Held Enclosure.

The Rose Beluga ExB series of hand-held enclosures are U-certified, IP65, excellent for applications within the Ex sector and gas-detection instrumentation. The Beluga ExB series are available in 3 sizes, Beluga 180, 220 and 380. The 180 and 220 sizes have a closed enclosure top and a window display opening. A fitted recess is standard for installing Ex-certified membrane keypads. The explosion and impact protected enclosures are made from Polyamide 12 and full certification is provided.

Features and Benefits.

Beluga ExB hand held enclosure 180 G ExB.
Ex-applications.
U-Certified.
IP65
3 Sizes available.
Made from Polyamide 12.
Explosion protection.
Colour is jet black (RAL 9005).
Impact resistant EN 60079-0.
Flame resistant UL 94 HB.
Surface resistance to IEC 60093.
Temperature range -20°C bis to +60°C.

Hand Held Enclosure Models Available.

•Stock number 7052130, Beluga 180 G ExB, closed top, display opening.
•Stock number 7052134, Beluga 220 G ExB, closed top, display opening.
•Stock number 7052143, Beluga 380 ExB

Enclosure Accessories Available.

•Stock number 7052146, Mounting Bracket / Hook Set for Beluga 180 (stock number 7052130) and Beluga 220 (7052134) hand held enclosures.
•The mounting brackets / hook sets do not include a magnet.

Enclosure Typical Applications.

•Ex Sector applications including gas detection instruments.

(IP) Ingress Protection and what it means.

The first number is the protection from solids.
The second number is the protection from liquids.

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ's.

Can the enclosure be used outside?

IP 65 protection from total dust ingress and waterproof (projected from any direction by 6.3 mm nozzle).

What is Supplied?

•Top and base with a seal.

Certificate No.

IECEx PTB 09.0019U, PTB 02 ATEX 1076U.

Group and Category

II 2G Ex e IIC Gb, II 2D Ex tb IIIC Db, IP65 (EN 60529). EN 60079-0, UL 94 HB, IEC 60093.

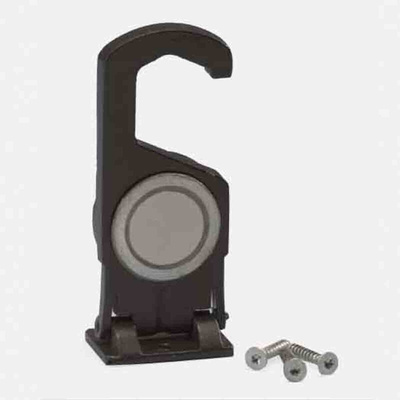

ROSE Enclosure Accessory, For Use With Beluga 180 and 220 Enclosures, Screw-In Mounting - 27020081

Need a reliable way to secure your handheld device while not in use? Choose this hookset from ROSE. It's compatible with the Beluga 180 and 220 units for ease of assembly. Thanks to its hook shape, it can hang on objects such as pipes and grilles. As the plastic hook screws into the back of your enclosure, you'll still be able to see the display window on the front and use the keypad for convenience. The Beluga enclosures have an IP65 rating, so they're protected against dust and low-pressure water jets for use in harsh indoor and outdoor environments.

Features & Benefits

• Screws included for ease of installation
• Flammability rating of UL 94 HB means it's self-extinguishing in the event of a fire
• Wide operating temperature range between -20°C and +60°C for use in demanding conditions
• Enclosure is ATEX-certified for use in explosive environments
• Durable polyamide construction for a long service life

Applications

• Machine operation and control
• Status analysis
• Gas detection

Does this component come with a magnet?

Yes. The built-in magnet allows you to mount your handheld device onto a metal surface instead of using the hanging hook, making it a versatile option.
