RS PRO Heating Element, 247mm, 400 W, 230 V ac, Нагревательный элемент

RS PRO Heating Element, 400 W, 230 V AC

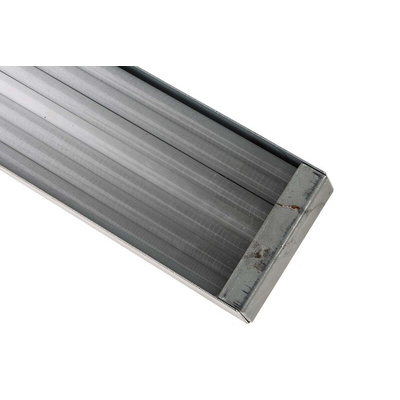

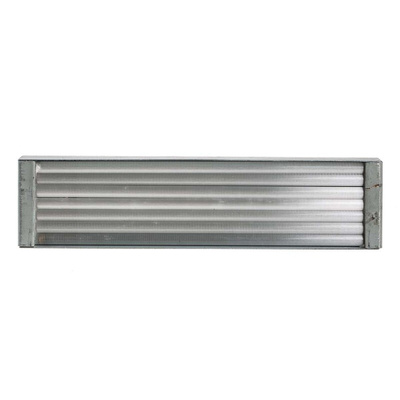

This quartz heating element from our trusted RS PRO range is ideally suited for processes that require medium-wave infrared radiation and rapid heater response. With an energy wavelength of 1.5 to 5.6 microns, this heater is useful in a range of domestic and commercial applications, including drying and curing.

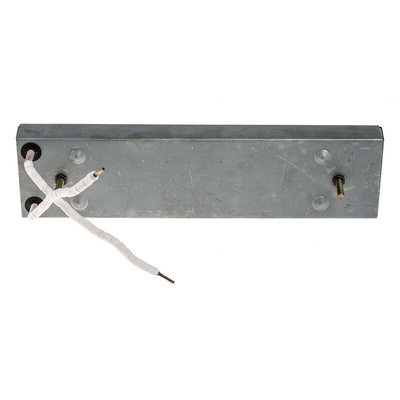

The heating element features a 230 V AC supply voltage with a 400 W power rating. Installation is easy, with two M5 x 30 mm rear mounting bolts (supplied) and 7 mm leads. Mounting with the quartz tubes in a horizontal position will stop the heating element from sagging and shorting out.

This multi-purpose heater is best used with additional control and temperature-sensing equipment, to prevent overheating and save energy. It should always be used with sufficient thermal, electrical and mechanical barriers.

Features and Benefits

• Quartz heating element
• Supply voltage of 230 V AC
• Power rating of 400 W
• Medium wave infrared radiation of 1.5 to 5.6 microns
• Stainless steel enclosure
• Lead length of 7 mm
• RoHS compliant for minimal hazardous materials
• Packed and handled in an environment that meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards
