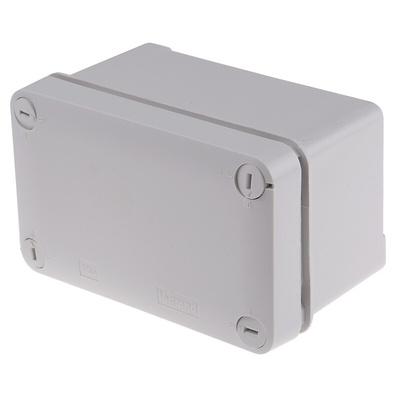

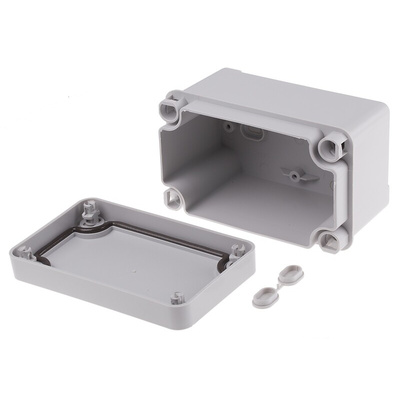

0 359 00, Legrand Atlantic Series Polycarbonate Wall Box, IP55, 140 mm x 85 mm x 81mm, Настенный шкаф

Legrand Plastic Enclosures

Legrand industrial enclosures are made from self-extinguishing light grey polypropylene and are halogen free. Two versions are available, offering either IP55/IK07 or IP66/IK08 protection. These enclosures conform to EN 60695 2-1.

Features and Benefits

Smooth sided housing
Equipment may be installed on a rail or solid plate
1/4-turn faceplate opening and closing using a flat screwdriver
Light grey RAL 7035
Polypropylene box and cover
Halogen free
Self-extinguishing 750° C
Temperature rating: –25° C to +40° C
IP55/IK07, stock nos. 705-5656, 705-5653, 705-5650 & 705-5669
IP66/IK08, stock nos. 705-5662, 705-5675 & 705-5666
Detachable clip-on cover retainer except stock no. 705-5697

Note

Available separately: set of 4 mounting lugs, stock no. 507-0521 and pair of lid hinges, stock no. 705-5688.

Standards

Conforms to EN 60695 2-1.

Industrial Metal and Plastic Boxes Data Sheet

Datasheet
