AU R2550060 RS1, Verderflex Peristaltic Electric Operated Positive Displacement Pump, 0.12L/min, 1 bar, 12 V dc, Насос

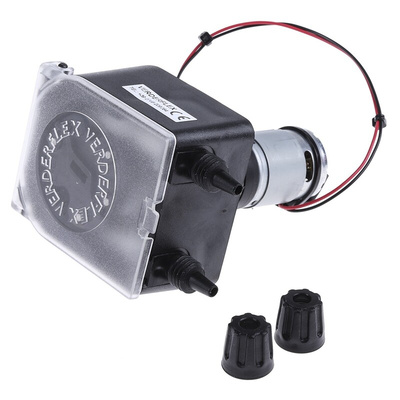

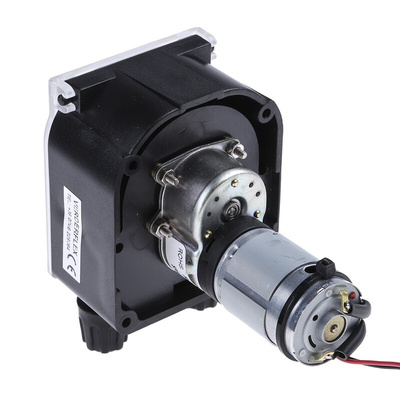

Verderflex Peristaltic Positive Displacement Pump

The Verderflex peristaltic, electric operated, positive displacement pump has a maximum flow rate of 0.12L/minute and maximum working pressure is 1bar.
It is available with a special guide roller rotor and 12VDC gear motor. This prevents contamination of the product being pumped by the pump head components. Peristaltic pumps will self-prime and act as non-return valve within certain pressure limits.

Features and Benefits

Body material is ABS, PC

The supply voltage is 12VDC
Maximum fluid temperature is 40°C
Input power is 6VA
Body cover is made of polycarbonate
Suitable for 1.6mm, 3.2mm, and 4.8 x 1.6mm wall tube
Reversible by changing polarity of motor
Secure 'tube nut' style connectors
Simple panel mounting

Datasheet
