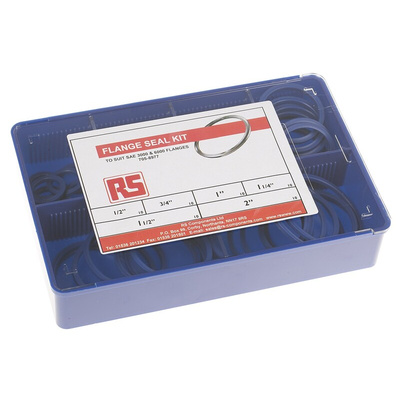

SAE Flange Seal Kit
Seals designed to fit the SAE J518 location grooves. With their rectangular cross-section and point-contact seal lips, they are formed and sized to accurately locate within the machine housing. Manufactured from a high performance grade of polyurethane, specifically developed for arduous sealing applications. The material provides excellent resistance to gap extrusion and compression set over a wide temperature range from -40°C to +110°C at up to 400 bar.
Offer a high pressure seal between SAE flanges and machine ports

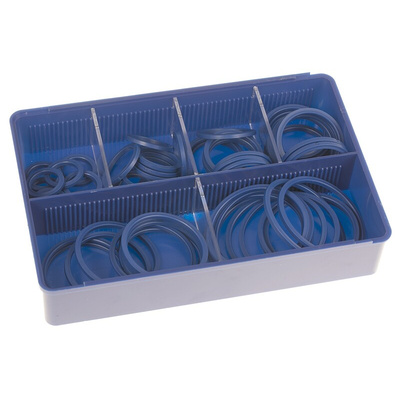

Kit contains the six standard SAE J518 sizes from 0.5in. to 2in.
SAE Flange Seal Kits offer a variety of seal sizes to fit SAE J518 location grooves. The SAE seals are rectangular in cross-section and have point-contact seal lips. The seals are designed to accurately locate within machine housings. Manufactured from high grade of polyurethane, specifically developed for arduous sealing applications, the material provides excellent resistance to gap extrusion and compression.
SAE O-Ring Flange and Hose End Kits contain a variety of cost-effective popular sizes to suit general engineering applications, with o-rings manufactured from Nitrile rubber (NBR) of 90 Shore hardness. Nitrile rubber is suitable for high temperature environments and offers resistance to greases and fats.Техническая спецификация
FLANGE SEAL KIT 7058977 Data Sheet
