RLFP222202D, Xylem Flojet Diaphragm Electric Operated Positive Displacement Pump, 3.8L/min, 2.4 bar, 24 V dc, Насос

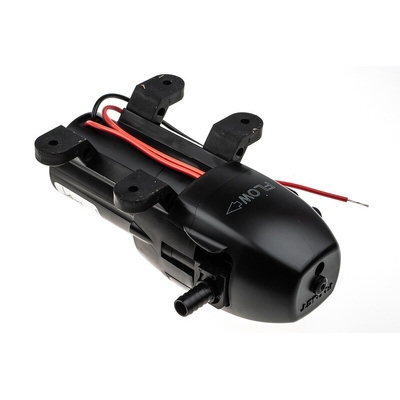

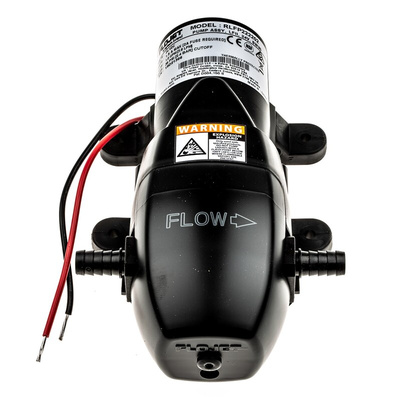

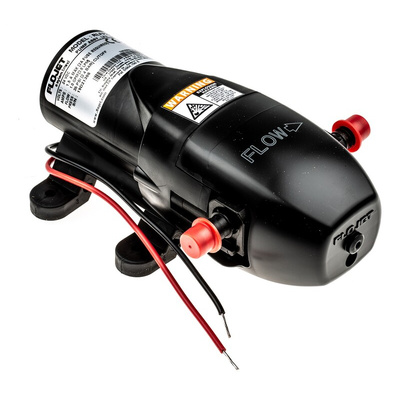

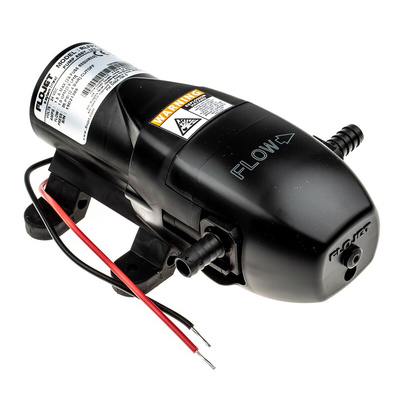

Xylem Flojet Positive Displacement Pump

The Xylem Flojet ultra-compact diaphragm positive displacement pump uses a unique duplex design to deliver flow and pressure comparable to much larger pumps. Its maximum flow rate is 3.8L/min. The built-in pressure switch automatically starts and stops the pump when the discharge valve is opened and closed. This pump is suitable for water and light water-based chemicals.

Caution:
Do not use for volatile low flash point solvents or fuels, also unsuitable for flammable liquids or to be used in an explosive atmosphere.

Features and Benefits

The supply voltage rating is 24VDC
Input power is 30W
Maximum working pressure is 2.4bar
Maximum Fluid temperature is 43°C
Self-priming capability up to 0.7m
The pump may be located above the liquid level
Duplex diaphragm design allows extended dry running without damage
Built-in thermal overload protection
Low amp draw for battery-powered applications
Pumps can be situated above the liquid level

Certifications

CE certified
NSF approved
IPX4 rated

Compact Self-Priming Diaphragm Pump Data Sheet
