R3811143A, Xylem Flojet Diaphragm Electric Operated Positive Displacement Pump, 5.5L/min, 10.5 bar, 12 V, Насос

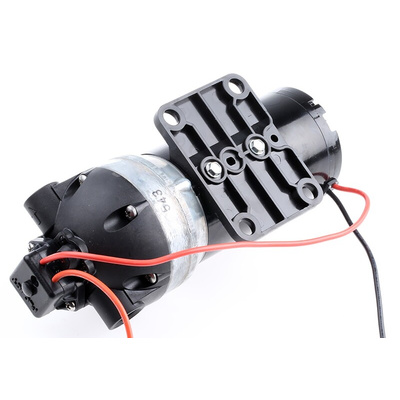

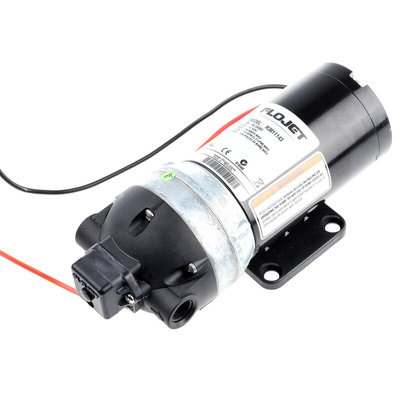

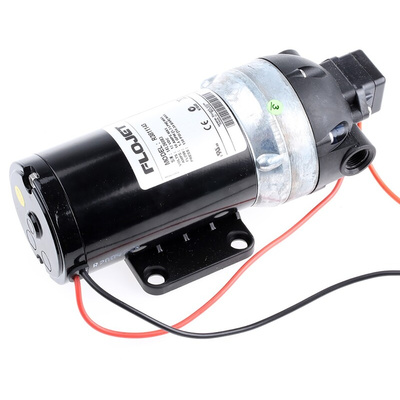

Xylem Flojet Positive Displacement Pump

The Xylem Flojet heavy-duty diaphragm positive displacement pump is suitable for many applications including chemical spraying, misting and filtration systems. Its maximum flow rate is 5.5L/min.

Caution:
Do not use for volatile low flash point solvents or fuels, also unsuitable for flammable liquids or to be used in an explosive atmosphere.

Features and Benefits

The supply voltage rating is 12V
Input power is 108W
Maximum working pressure is 10.5bar
Maximum Fluid temperature is 60°C
Self-priming capability up to 2m
Can be located above the supply tank
3-chamber diaphragm pump
Corrosion-resistant liquid contact parts
Intermittent duty
Can running dry for extended periods of time without damage
Sealed pressure switch and motor
Built-in backflow preventer

Certifications

CE certified
NSF approved
