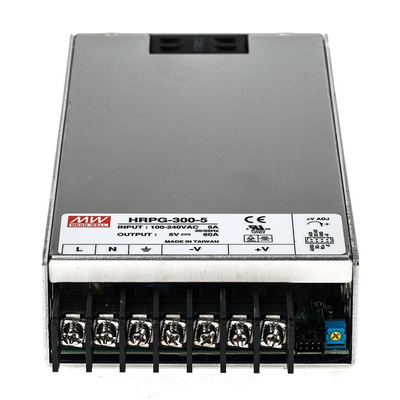

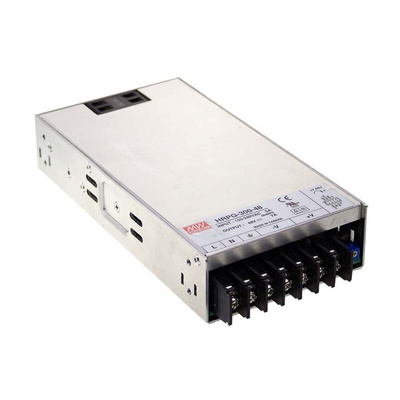

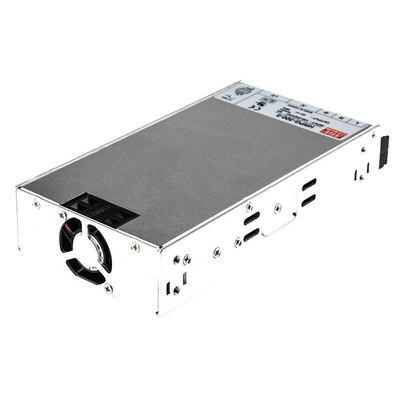

MEAN WELL Switching Power Supply, HRPG-300-5RS, 5V dc, 60A, 300W, 1 Output, 120 → 370 V dc, 85 → 264 V ac, Источник питания

HRPG-300 Series Single Output Power Supply with PFC Function

High efficiency, long life and high reliability
No load power consumption <0.5W
Built-in active PFC function
Built-in constant current limiting circuit
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote sense function
Built-in remote ON-OFF control
Short circuit, over load, over voltage and over temperature protection
Withstands 300Vac surge input for 5 seconds
1U low profile 41mm
Power factor correction to EN61000-3-2,-3
EMC compliance to EN55022 class B

Note

Power derates above 50°C.
MTBF to MIL-HDBK-217F.

Standards

UL60950-1, TUV EN60950-1

Approvals

UL/cUL recognised, TUV, CB

HRPG-300 Series specification sheet

Declaration Of Conformity
