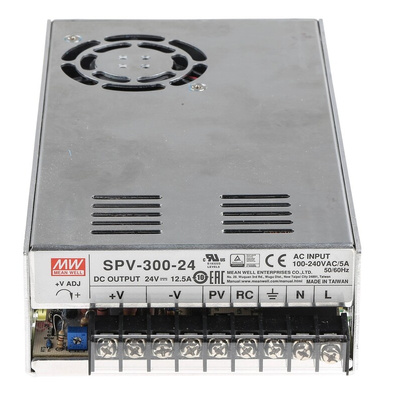

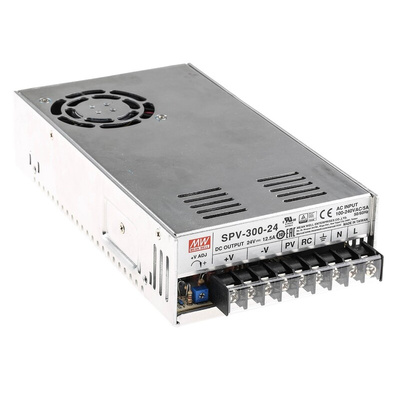

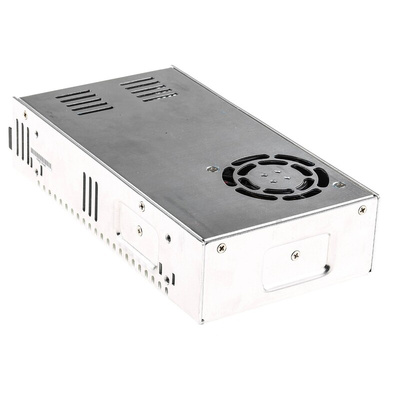

MEAN WELL Switching Power Supply, SPV-300-24RS, 24V dc, 12.5A, 300W, 1 Output, 124 → 370 V dc, 88 → 264 V, Источник питания

Mean Well Switch Mode Power Supply

The Mean Well SPV-300 series 300W single output AC to DC embedded switch mode power supply has an output current rating of 12.5A at 24VDC. It has a universal input supply voltage rating from 88VAC to 264VAC and 124VDC to 370VDC. In the power supply, by adding 1VDC to 5.5VDC external control signal which increases the flexibility to end systems users with equipment that require switching between different output voltages. This power supply has a high-frequency capability and possesses efficiency of up to 85%.

Features and Benefits

Built-in active PFC function, PF greater than 0.95
Short circuit protection
Overload protection
Overvoltage and over temperature protection
Forced air cooling by built-in DC fan
Built-in fan speed control
Fixed switching frequency at 100KHz
Output voltage programmable from 20 to110% output voltage by external control 1VDC to 5.5VDC

Applications

LCD panel burn in system
IC testing equipment
Factory automation
Mechanical and electrical industry

Certifications

UL60950-1
EN60950-1
EN55032 (CISPR32) class B
EN61000-3-2,-3
EAC TP TC 020
EN61000-4-2,3,4,5,6,8,11
EN55024
Criteria A
EAC TP TC 020
