1-1546409-1, TE Connectivity 1-1546409 Series Female RJ45 Connector, Cable Mount, Cat5, Разъем

TE Connectivity Industrial Ethernet Circular Sealed RJ45 Variant 3 Standard PCB Receptacles

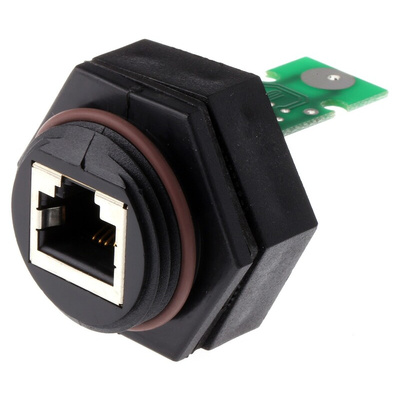

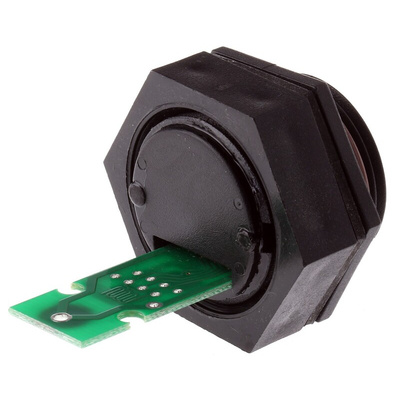

Industrial Ethernet circular sealed RJ45 Variant 3 standard PCB receptacles that enable a cable lead to be soldered to an internal Ethernet connection. These industrial Ethernet RJ45 Variant 3 PCB receptacles have an ABS shell and an outer threaded connection that contributes towards an IP67 rating and vibration resistance. These RJ45 Variant 3 PCB receptacles are compatible with standard commercial RJ45 connectors, category 5e cable and intermateable with unshielded products. All models are highly reliable and excellent quality.

Features & Benefits

Stock number 706-0204 is a receptacle with PC board
Stock number 788-4498 is a receptacle with PCB and a 12 in 10 Base-T cable
Stock number 788-4492 is a receptacle with PCB and a 12 in 568A cable
Stock number 788-4502 is a receptacle with PCB and a 12 in 568B cable
For suitable plug connectors see stock number 706-0210
For closure caps see stock numbers 706-0166 and 782-7613

Standards

Compliant to IEC 61076-3-106 – Variant 3 sealed

TE Connectivity Range

Connector, Rec, RJ45, w/PC Board Technical drawing
