TE Connectivity Industrial Mini I/O
A range of compact, latching, wire-to-board Industrial Mini I/O interface connectors from TE Connectivity. These Industrial Mini I/O connectors are a quarter of the size of RJ45. For increased reliability in industrial applications is achieved by these Industrial Mini I/O interface connectors having two points of contact.
Type I Industrial Mini I/O connectors for use of all non Ethernet based Protocols are 703-9660 and 706-0214 .
Type II Industrial Mini I/O connectors for use of all Ethernet based Protocols are 706-0220 and 706-0223 .

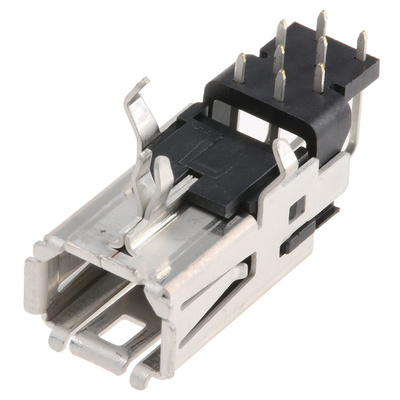

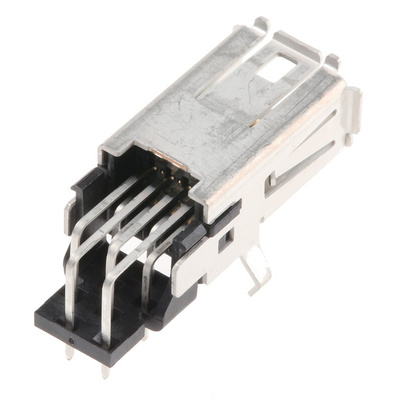

706-0220 and 703-9660: Through-hole configuration DIP/H-Type
706-0214 and 706-0223: SMT configuration 0.635 mm pitch pads
No. of Positions: 8
Voltage: 30 V
Current: 0.5 A
Durability: 1500 cycles
|No. of Positions||8|
|Mounting||Wire to Board|
|Operating Temperature||-40 → +70°C|
Connector 8 way jack mini I/O - Technical Drawing
