3RT2025-1AP00, Siemens 3RT2 Series Contactor, 230 V ac Coil, 3-Pole, 17 A, 7.5 kW, 3NO, 400 V ac, Контактор

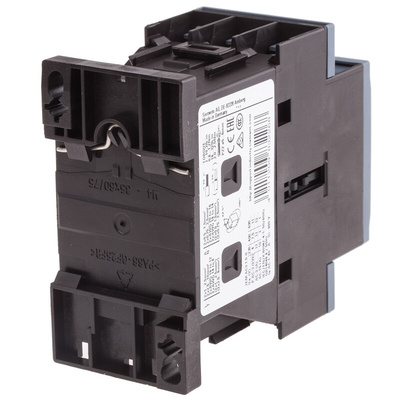

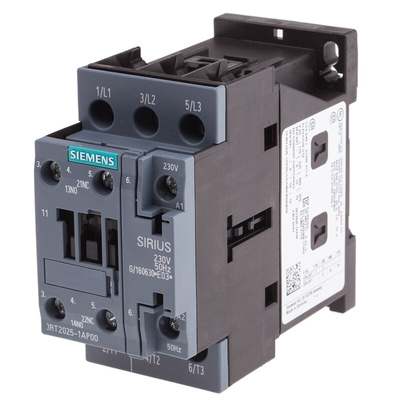

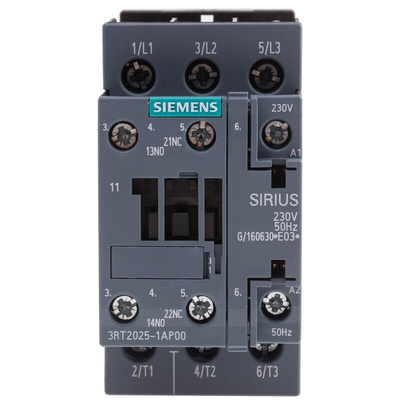

Siemens 3-Pole Contactor, 7.5kW, 16A - SIRIUS Innovation Series - 3RT2025-1AP00

Use this 3-pole contactor from Siemens to control high power loads in industrial environments. The electromechanical device can either stand alone or be used with a relay as a motor starter. It has three normally open (NO) contacts that switch the connected equipment on or off when needed. Integrated fuses are on hand to cut off power when a fault occurs to enhance electrical safety. Compact dimensions of 85 (H), 45 (W) and 97mm (D) make it a space-efficient component ideal for small setups. Thanks to a power rating of 7.5kW, it's suitable for use in heavy-duty industrial control applications.

• Wide operating temperature range of -25°C to +60°C for use in demanding environments
• Reliably long mechanical service life of 30,000,000 operations
• IP20 (ingress protection) rating means it can withstand dust and objects larger than 12mm in size
• Can be rotated +/-180° on a vertical mounting surface for optimal flexibility

What's an auxiliary contact on a 3-pole contactor?

An auxiliary contact is a mechanically operated contact that's linked to the main contacts and is activated at the same time as the other three poles. It's also known as the supplementary or control contact.

Load feeders Configuring SIRIUS Innovations Configuration Manual 04/2010

Switching Devices for Load Feeders

Datasheet

Sirius Innovation Accessory Guide

Sirius Innovation Catalogue

Sirius Innovations Switching Devices

Solutions for frequent switching or soft starting

Basic Information

Siemens Sirius Migration

Sirius: Migrating From Classic to Innovation

Datasheet 3RT2025-1AP00

Environmental Product Declaration

Environmental Product Declaration - Overview

Siemens EcoTech label
