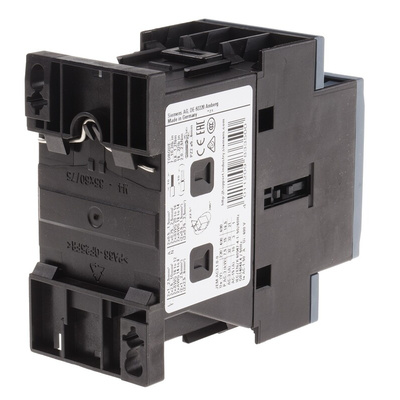

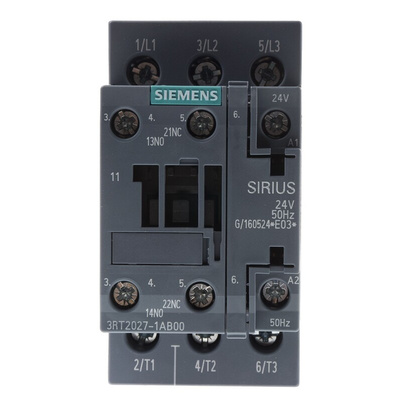

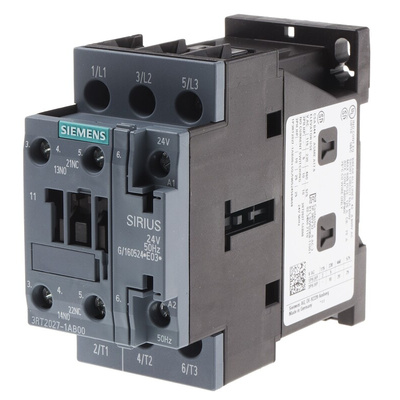

3RT2027-1AB00, Siemens 3RT2 Series Contactor, 24 V ac Coil, 3-Pole, 32 A, 15 kW, 3NO, 400 V ac, Контактор

Contactors – 3RT2 Range

The 3RT2 contactors are climate-proof and are suitable and tested for use worldwide, sizes S00 to S2, up to 37 kW

Size S00, up to 7.5 kW
Size S0, up to 18.5 kW
Size S2, up to 37 kW
Screw connection / Spring Clamp
Impulse voltage resistance 6 kV
Insulation voltage 690 V
Real loss power only 4 W
Designation K according to DIN 40719 (extendable to IEC 204-2) & IEC 750; Q according to DIN EN 61346-2

Note

Screw terminals can only be used with screw terminal overloads and spring terminals can only be used with spring terminal overloads.

Approvals

CE, UL, CSA, CCC

Siemens Contactor, 3 Poles, 400V AC Contact Voltage - SIRIUS Innovation 3RT2 Series - 3RT2027-1AB00

Take charge of your high-power equipment with this 3-pole contactor from Siemens. It uses a low-voltage input to open and close a 690V circuit, so it's a safe way to control applications like electric starter motors and lighting installations. Thanks to its 2 auxiliary contacts, the robust unit can easily handle current spikes and other electrical hazards, so it protects your equipment in fault conditions. A straightforward screw termination method gives you long-lasting connections you can rely on. The 3NO configuration means no current flows until you flick the switch, so your machinery won't power up until you're ready.

• Compact dimensions of 45 (W) x 97 (D) x 85mm (L) mean it fits comfortably in cramped spots
• Wide operating temperature range between -25°C and +60°C so it's reliable in extreme conditions
• 15kW maximum operating power means it can easily handle heavy-duty industrial tasks

Is the housing touch-proof?

Yes – this contactor has a finger-safe IP20 rating so you won't get an electric shock if you touch the surface while it's running.
