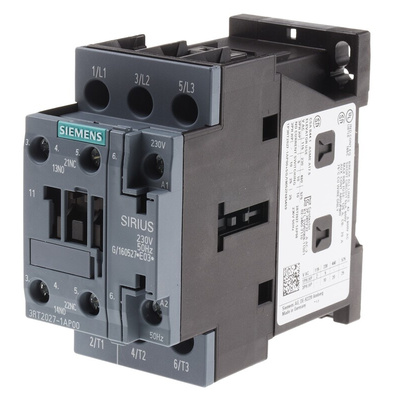

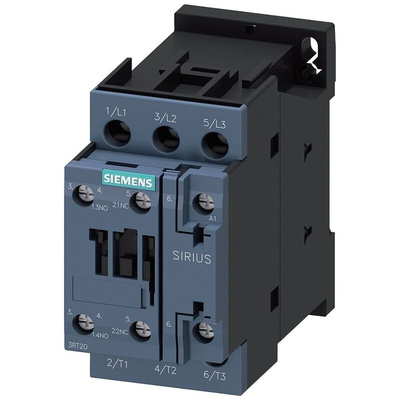

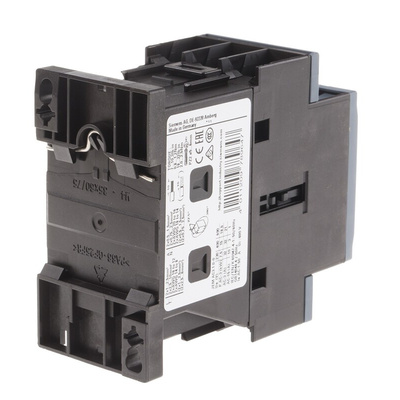

3RT2027-1AP00, Siemens 3RT2 Series Contactor, 230 V ac Coil, 3-Pole, 32 A, 15 kW, 3NO, 400 V ac, Контактор

7061383
Номер производителя: 3RT2027-1AP00Производитель: Siemens
Цена за шт.
39031.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Contactors – 3RT2 Range

The 3RT2 contactors are climate-proof and are suitable and tested for use worldwide, sizes S00 to S2, up to 37 kW

Size S00, up to 7.5 kW
Size S0, up to 18.5 kW
Size S2, up to 37 kW
Screw connection / Spring Clamp
Impulse voltage resistance 6 kV
Insulation voltage 690 V
Real loss power only 4 W
Designation K according to DIN 40719 (extendable to IEC 204-2) & IEC 750; Q according to DIN EN 61346-2

Note

Screw terminals can only be used with screw terminal overloads and spring terminals can only be used with spring terminal overloads.

Approvals

CE, UL, CSA, CCC

Siemens Contactor, Screw Terminals, 3 Poles - SIRIUS Innovation Series - 3RT2027-1AP00

Looking for a reliable way to turn your high-powered devices on and off? Choose this contactor from Siemens. Its contact current of 32A and its overall power rating of 15kW make it a good choice for use in heavy-duty systems. Thanks to the screw terminals, the device is simple to wire without the need for specialised tools. It snaps into place on a DIN rail for ease of integration into your existing setup. You can use this contactor for applications that need frequent switching, such as motors, heating operations and lighting systems.

Features & Benefits

• Mechanical lifespan of 10 million switching cycles for long-lasting performance
• Compact dimensions of 85 (H) x 45 (W) x 97mm (D) to add minimal bulk to your setup
• IP20 rating means it's touch-proof and protected against objects larger than 12mm
• Surge voltage resistance of 6kV to withstand powerful spikes in voltage

Can I use this contactor in demanding environments?

Yes. This device has a wide operating temperature range between -25°C and +60°C, so it's a good choice for use in harsh conditions.

Техническая спецификация
pdfLoad feeders Configuring SIRIUS Innovations Configuration Manual 04/2010
pdfSwitching Devices for Load Feeders
pdfDatasheet
pdfSirius: Migrating From Classic to Innovation
pdfInstruction Sheet - SIRIUS Contactor S0
pdfCatalogue - SIRIUS Industrial Controls
pdfEnvironmental Product Declaration
pdfEnvironmental Product Declaration - Overview
pdfSiemens EcoTech label
Вид монтажа:
Side by Side
Глубина:
97мм
Диапазон:
SIRIUS
Длина:
85мм
Заявление Better World:
Low carbon manufacture
Катушка напряжение:
230 В перем. тока
Количество вспомогательных контактов:
2
Количество полюсов:
3
Конфигурация полюса и сброса:
3P
Мощность номинальная:
15 кВт
Номинальное напряжение контакта:
400 В перем. тока
Номинальный ток контакта:
32 A
Нормальное состояние конфигурации:
3NO
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-25°C
Серия:
3RT2
Тип клеммы:
Винт
Товар Better World:
Да
Ток нагрузки:
27A
Функция:
3-Phase Motor Monitoring
Ширина:
45мм
