3RT2027-1BB40, Siemens 3RT2 Series Contactor, 24 V dc Coil, 3-Pole, 32 A, 15 kW, 3NO, 400 V ac, Контактор

Contactors – 3RT2 Range

The 3RT2 contactors are climate-proof and are suitable and tested for use worldwide, sizes S00 to S2, up to 37 kW

Size S00, up to 7.5 kW
Size S0, up to 18.5 kW
Size S2, up to 37 kW
Screw connection / Spring Clamp
Impulse voltage resistance 6 kV
Insulation voltage 690 V
Real loss power only 4 W
Designation K according to DIN 40719 (extendable to IEC 204-2) & IEC 750; Q according to DIN EN 61346-2

Note

Screw terminals can only be used with screw terminal overloads and spring terminals can only be used with spring terminal overloads.

Approvals

CE, UL, CSA, CCC

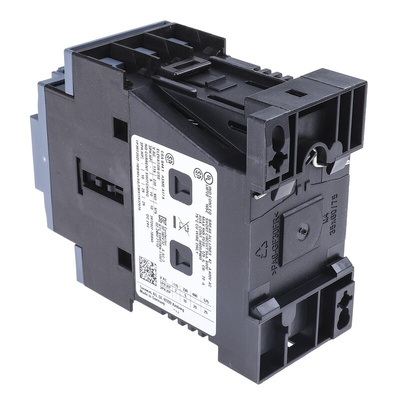

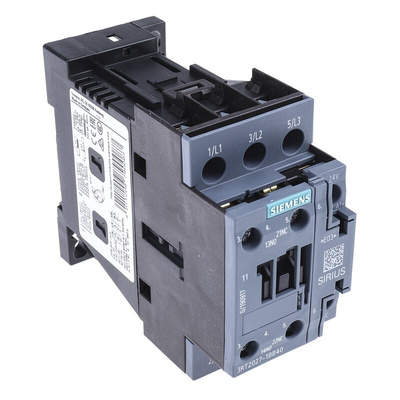

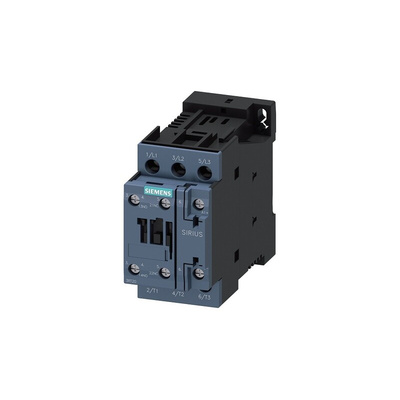

Siemens 3-Pole Contactor, 32A Current Rating, 3NO Contacts - SIRIUS Innovation Series - 3RT2027-1BB40

Safely start your electric motors with this reliable contactor from the Siemens SIRIUS Innovation range. Its three normally open contacts allow you to control three circuits at the same time, reducing the amount of cabling needed in your setup. For enhanced safety, its terminals are located away from the reach of your fingers to prevent contact that may lead to electric shocks. As the contactor delivers up to 15kW of power, it's useful in heavy-duty applications. It comes housed in a thermoplastic material that provides impact protection, making it a practical choice for use in harsh environments. You'll find this contactor commonly used in process and packaging equipment.

• Minimal power loss of 2.7W for energy efficiency
• Ingress protection rating of IP20 indicates it's touch-proof and dust-proof
• Integrated 125A gL/gG fuse for protection from short circuits
• Mechanical service life of 10,000,000 operating cycles for long-term performance

Is this contactor waterproof?

This contactor isn't protected from liquids so you should keep it away from water or sources of moisture during operation and storage.
