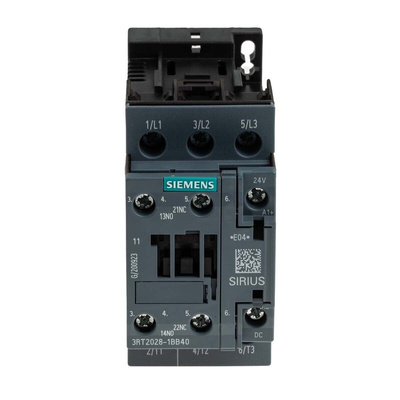

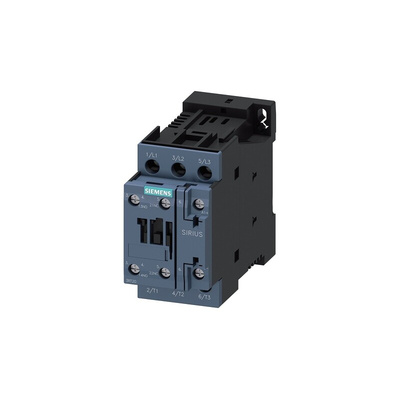

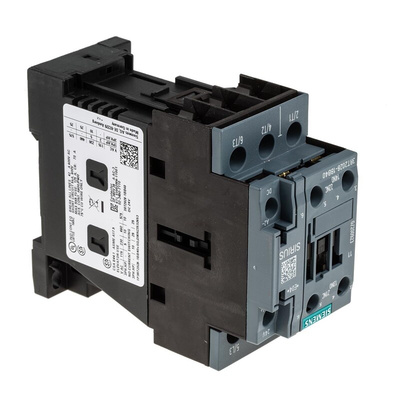

3RT2028-1BB40, Siemens 3RT2 Series Contactor, 24 V dc Coil, 3-Pole, 38 A, 18.5 kW, 3NO, 400 V ac, Контактор

7061412
Номер производителя: 3RT2028-1BB40Производитель: Siemens
Цена за шт.
64104.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Contactors – 3RT2 Range

The 3RT2 contactors are climate-proof and are suitable and tested for use worldwide, sizes S00 to S2, up to 37 kW

Size S00, up to 7.5 kW
Size S0, up to 18.5 kW
Size S2, up to 37 kW
Screw connection / Spring Clamp
Impulse voltage resistance 6 kV
Insulation voltage 690 V
Real loss power only 4 W
Designation K according to DIN 40719 (extendable to IEC 204-2) & IEC 750; Q according to DIN EN 61346-2

Note

Screw terminals can only be used with screw terminal overloads and spring terminals can only be used with spring terminal overloads.

Approvals

CE, UL, CSA, CCC

Siemens 3-Pole Contactor, 400V Voltage Rating, 38A Current Rating - SIRIUS Innovation Series - 3RT2028-1BB40

For effective motor control and protection, choose this contactor from the Siemens SIRIUS Innovation range. It works by switching the motor on or off and can offer short-circuit protection when used as a starter. It has an operating temperature range of -25°C to +60°C, so you can use it safely in demanding industrial environments. Thanks to minimal power loss of 3.8W, this is an energy-efficient choice for motor control. It has a mechanical service life of 10 million operating cycles, so you can rely on it for long-term performance in applications such as lifts and escalators.

• Screw-type terminals for quick and easy installation
• Contact voltage rating of 400V is suitable for use in low-voltage applications
• Ingress protection rating of IP20 indicates it's resistant dust and objects larger than 12mm in size, including fingers
• Rated surge voltage resistance of up to 6kV to withstand power spikes

What are the dimensions of this contactor?

With compact dimensions of 85mm (height), 45mm (width) and 107mm (depth), this contactor is a space-saving solution for smaller enclosures.

Техническая спецификация
pdfLoad feeders Configuring SIRIUS Innovations Configuration Manual 04/2010
pdfSwitching Devices for Load Feeders
pdfDatasheet
pdfSirius: Migrating From Classic to Innovation
pdfSiemens - Environmental Product Declaration
pdfEnvironmental Product Declaration
pdfEnvironmental Product Declaration - Overview
pdfSiemens EcoTech label
Глубина:
107мм
Диапазон:
SIRIUS
Длина:
85мм
Заявление Better World:
Low carbon manufacture
Катушка напряжение:
24 В пост. тока
Количество вспомогательных контактов:
2
Количество полюсов:
3
Мощность номинальная:
18.5 кВт
Номинальное напряжение контакта:
400 В перем. тока
Номинальный ток контакта:
38 A
Нормальное состояние конфигурации:
3NO
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-25°C
Серия:
3RT2
Тип клеммы:
Винт
Товар Better World:
Да
Ширина:
45мм
