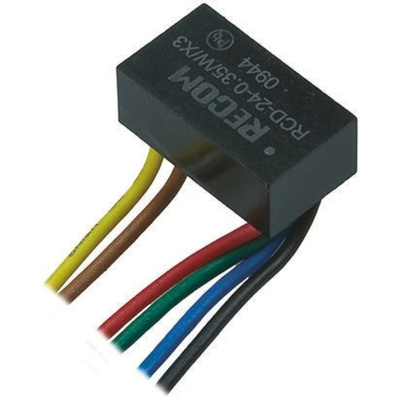

RCD-24-0.30/W/X3, Recom LED Driver, 2 → 35V dc Output, 10.5W Output, 300mA Output, Constant Current Dimmable, Драйвер светодиодов

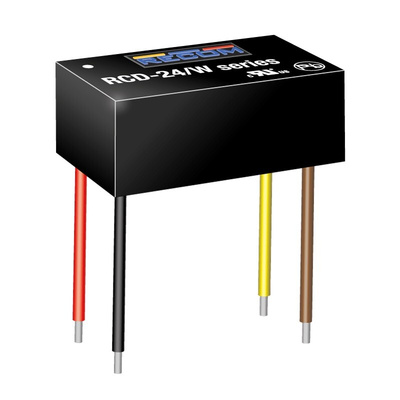

Recom RCD-24 Constant Current LED Driver - Wired with Analogue and PMW Control

Recom RCD-24 series step-down constant current LED drivers designed for driving high power white LEDs. Despite its compact size, the RCD-24 series is fully featured with very high efficiency, wide input voltage range, high ambient operating temperature and two means of dimming: PWM/digital control and analogue voltage dimming. Both dimming controls are independent and can be combined. The driver is also designed to be as reliable as the LEDs it is driving, even at the full operating temperature.

Features and Benefits

• Non-isolated

• Drives up to ten 2W power LEDs

• Constant current source

• Output current accuracy ±2%, Output current stability ±1%

• Efficiency up to 96%

• Wide input voltage range

• PWM digital and analogue voltage dimming

• Remote On/Off control pin

• 0 to 4Vdc analogue dimming

• Short circuit protection

• Compact package

RECOM LED Driver, DC to DC Primary Type, 0 to 4V PWM Dimming Function - RCD-24 Series - RCD-24-0.30/W/X3

This constant current driver from RECOM makes light work of powering your LED display. Thanks to its sturdy 10.5W output, you can use it to drive up to ten 2W bulbs in series. Thanks to a maximum efficiency of 96%, you can be sure it's not heavy-handed when it comes to energy use. An IP67 rating means this device is protected against high-pressure jets from all directions and short periods of complete submersion, so it's well-suited to outdoor use. A pulse-width modulated dimming function gives you digital control over the brightness of your LED output, and for added flexibility, this nifty little gadget also offers an analogue dimming option if you need it.

• Comes pre-wired for hassle-free installation
• Operating temperature between -40°C and +85°C means it's compatible with challenging settings
• Short-circuit protection boosts safety

Applications

• Retail lighting
• Entertainment displays
• LED signs

How long will this product last?

Thanks to its lengthy 605,000-hour mean time between failures, you can expect a long service life from this device. To keep it functioning at top condition, run it at its recommended output of 300mA.
