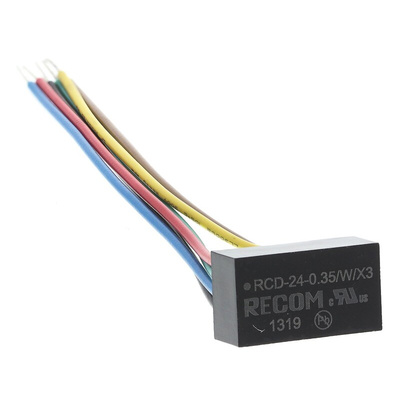

RCD-24-0.35/W/X3, Recom LED Driver, 2 → 35V dc Output, 12.25W Output, 350mA Output, Constant Current Dimmable, Драйвер светодиодов

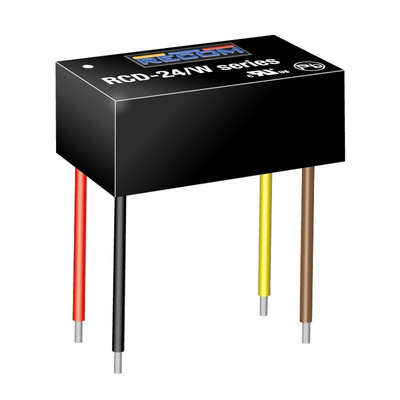

Recom RCD-24 Constant Current LED Driver - Wired with Analogue and PMW Control

Recom RCD-24 series step-down constant current LED drivers designed for driving high power white LEDs. Despite its compact size, the RCD-24 series is fully featured with very high efficiency, wide input voltage range, high ambient operating temperature and two means of dimming: PWM/digital control and analogue voltage dimming. Both dimming controls are independent and can be combined. The driver is also designed to be as reliable as the LEDs it is driving, even at the full operating temperature.

Features and Benefits

• Non-isolated

• Drives up to ten 2W power LEDs

• Constant current source

• Output current accuracy ±2%, Output current stability ±1%

• Efficiency up to 96%

• Wide input voltage range

• PWM digital and analogue voltage dimming

• Remote On/Off control pin

• 0 to 4Vdc analogue dimming

• Short circuit protection

• Compact package

RECOM LED Driver, Wired Connections, ±3% Maximum Output Current Accuracy - RCD-24 Series - RCD-24-0.35/W/X3

Want a flicker-free lighting array? This LED driver from RECOM delivers up to 12.25W of power, so you can rest assured it keeps your system going strong. It comes with both analogue and digital dimming functions, helping you get your lighting level just right. Staying on top of energy use is easy thanks to this device's 96% efficiency, which means minimal power is wasted as heat. Thanks to its colour-coded connectors, you can easily identify the unit's wires to make installation a simple process.

Features & Benefits

• Built-in short-circuit protection helps stop damage from electrical surges
• Maximum output current accuracy of ±3%, so delivers the precise power supply needed by sensitive equipment
• Suitable for operating temperatures between -40°C and +85°C to take the heat of harsh industrial environments
• Slim dimensions of 22.1 (L) x 12.6 (W) x 8.5mm (H) to fit in busy systems

Applications

• Retail units
• Hotels and hospitality venues
• Rail industry

Can I use this LED driver in my outdoor application?

Yes, this unit has an IP67 rating which means it's dust-tight and resistant to shallow water submersion, so it's safe for use in damp conditions.
