Recom Switching Power Supply, RAC04-24SA, 24V dc, 167mA, 4W, 1 Output, 90 → 264 V ac, 90 → 305 V ac Input, Источник питания

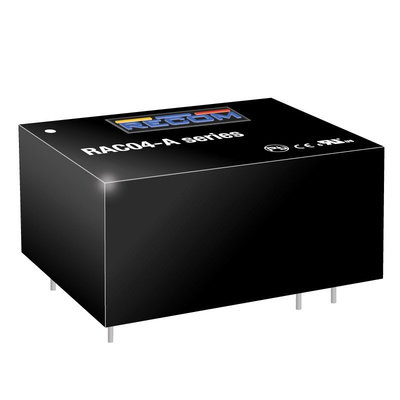

RECOM Switching Power Supply, 90 to 264V AC Input Voltage Range, 24V DC Output Voltage - RAC04 Series - RAC04-24SA

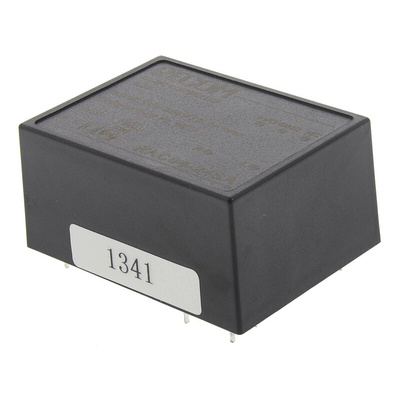

Use this switching power supply from RECOM to convert AC power to DC power. This component has a fibreglass epoxy casing that acts as an insulator to protect you from electric shocks. It steps down input voltages ranging from 90 to 264V AC to a stable output voltage of 24V DC for use in low-power applications. The device has a low maximum capacitive load of 220μF to ensure high-integrity output signals. For added electrical safety, it comes with built-in protection against short circuits and overvoltage.

Features & Benefits

• Light weight of 26g to put minimal strain on your PCB
• Broad operating temperature range between -40°C and +70°C for use in harsh conditions
• Mean time between failures of more than 350,000 hours for long-term reliability

Applications

• Medical equipment
• Telecommunication facilities
• Data centres

Is this device flame-retardant?

Yes, this device stops burning in 10 seconds or less for safety in the event of a fire.

How efficient is this power supply?

This component has a high efficiency rating of 77%, so you can depend on it for minimal power loss and optimal performance.
