R1S-2405, Recom R1S DC-DC Converter, 5V dc/ 200mA Output, 21.6 → 26.4 V dc Input, 1W, Surface Mount, +100°C Max Temp -40°C, Преобразователь

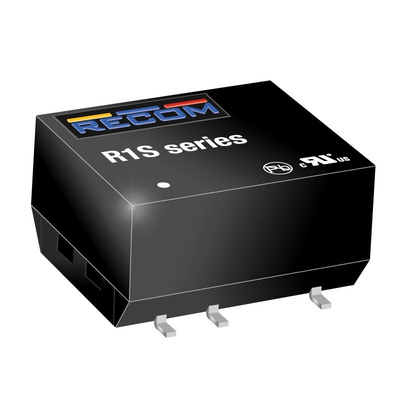

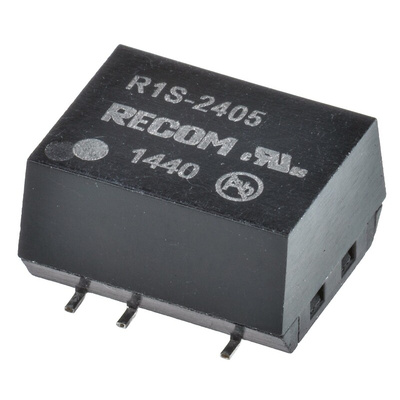

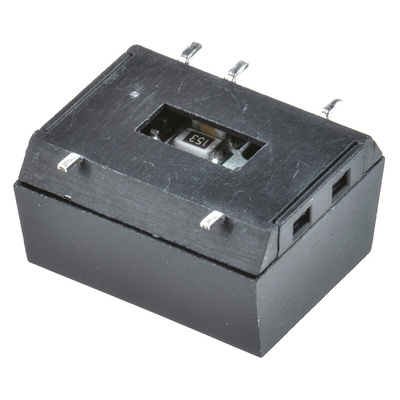

RECOM DC-DC Converter, 5V DC Output Voltage, 200mA Output Current - R1S Series - R1S-2405

Regulate the voltage supply to your PCB components with this DC-DC converter from RECOM. It has an isolation voltage of 1kV DC to help prevent damage to your devices from sudden voltage spikes. Continuous short circuit protection is in-built to prevent electric shocks and ensure user safety. As the unit has an efficiency rating of 72 to 78%, you can be sure of minimal power loss during operation and optimal performance. A wide operating temperature range of -40°C to +100°C means it's suitable for use in demanding industrial environments.

Features & Benefits

• Compact dimensions of 12.75 (L) x 10.7 (W) x 7mm (H) take up minimal space in your setup
• Output voltage of 5V DC for use in low-power applications
• Light weight of 1g, so won't strain your PCB

Applications

• Automotive equipment
• Telecommunication industry
• Factory robotics

How accurate is this DC-DC converter?

This DC-DC converter has a typical output voltage accuracy of +2%, giving you the power supply needed by sensitive equipment.

How long will this component last?

A mean time between failures of 4,275,000 hours at +25°C means you can depend on this unit in the long term.

Datasheet
