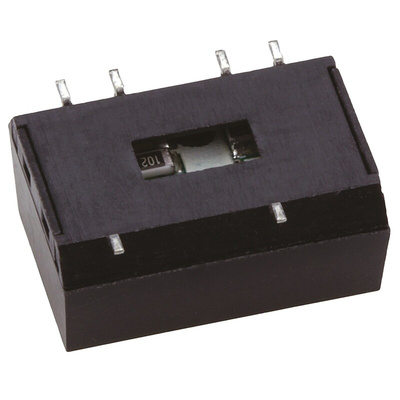

R1D-0512, Recom R1D DC-DC Converter, ±12V dc/ ±42mA Output, 4.5 → 5.5 V dc Input, 1W, Surface Mount, +100°C Max Temp -40°C, Преобразователь

Recom 1W SMD Single/Dual Output Unregulated Isolated DC-DC Converter - R1S & R1D Series

Enclosed un-potted open frame type converters
Full power at 100°C ambient temperature
1kVdc isolation voltage
Short circuit protection
High efficiency up to 84%

Note

Operating temperature is without derating.
MTBF to MIL-HDBK 217F (+25°C).

Standards

UL60950-1

Approvals

CB, CSA, UL recognised component

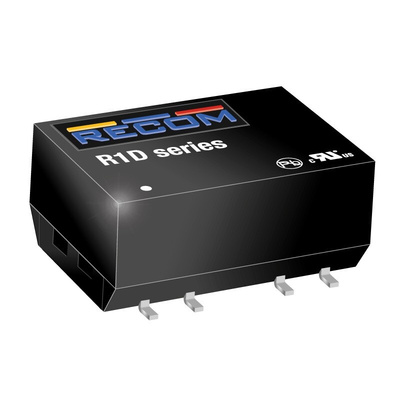

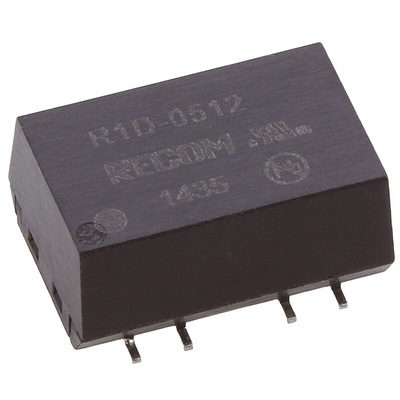

RECOM DC-DC Converter, Dual Output, 1kV Isolation Voltage - R1D Series - R1D-0512

Looking for a versatile way to power up your electrical components? Take charge with this 1W DC-DC converter from RECOM. When you put in 5V DC, it delivers outputs of ±12V and ±42mA to energise compatible circuits without a hitch. As this converter's maximum operating humidity is 95% RH, it functions well in areas where lots of water vapour can be expected. Thanks to its small size of 15.24 (L) x 10.7 (W) x 6.7mm (H), it fits neatly onto busy PCBs.

• Net weight of 1.2g won't put a strain on your equipment
• Mean time between failures at +25°C is 4,275,000 hours, so you can expect it to last for the long haul
• Surface mounting design for a speedy setup
• High efficiency range between 75 and 80% means it's an energy-conscious choice

Applications

• Industrial automation
• Robotics systems
• Automotive technology

Is this product suitable for use in harsh work areas?

Yes. Thanks to its broad operating temperature range between -40°C and +100°C, this DC-DC converter holds its own in challenging settings.
