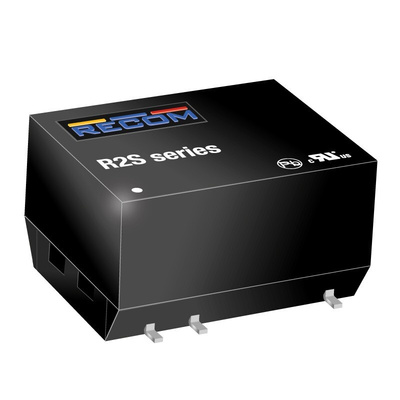

R2S-0524, Recom R2S DC-DC Converter, 24V dc/ 83mA Output, 4.5 → 5.5 V dc Input, 2W, Surface Mount, +100°C Max Temp -40°C, Преобразователь

Recom 2W SMD Single/Dual Output Unregulated Isolated DC-DC Converter - R2S & R2D Series

Enclosed un-potted open frame type converters
Full power at 100°C ambient temperature
1kVdc isolation voltage
Short circuit protection
High efficiency up to 85%

Note

Operating temperature is without derating.
MTBF to MIL-HDBK 217F (+25°C).

Standards

UL60950-1, EN-60950-1

Approvals

CB, CSA, UL recognised component

RECOM DC-DC Converter, ±5% Output Voltage Accuracy, 85% Efficiency Rating - R2S Series - R2S-0524

Pump up your power with this DC-DC converter from RECOM. It boosts a 5V input voltage to a 24V output, bridging the gap between your electrical supply and your equipment's needs. The device's line regulation of ±1.2% keeps its output loads in check so attached machinery runs without a hitch. As it can handle surge voltages up to 1kV, you can rest assured this converter stays on top of electrical faults. Connecting it up is easy, thanks to its dot marking and labelled wiring diagram.

Features & Benefits

• Converts up to 85% of input loads, keeping your circuits energy-efficient
• Works in temperatures between -40°C and +100°C so you can use it in harsh industrial conditions
• Simple surface mounting makes installation quick and easy
• Measures just 12.8 (L) x 10.7 (W) x 8.7mm (H) so it's compact enough to fit into hard-working systems

Applications

• Semiconductor manufacturing
• Domestic appliances
• HVAC systems

Can I use this converter in automated assembly systems?

Yes, this product works with fully automated assembly systems to take the job off your hands.
