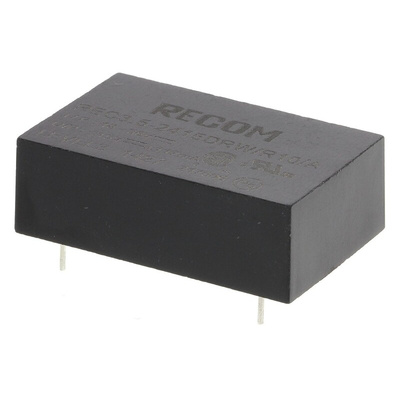

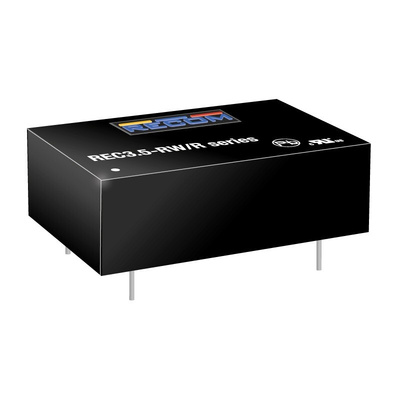

REC3.5-2415DRW/R10/A, Recom REC3.5 DC-DC Converter, ±15V dc/ ±117mA Output, 18 → 36 V dc Input, 3.5W, Through Hole, +85°C Max Temp, Преобразователь

Recom 3.5W DIP Single/Dual Output Medical Approved Regulated Isolated DC-DC Converter - REC3-R10/A Series

Regulated output
10kVdc reinforced isolation
Industry standard DIP24 package
Continuous short circuit protection
Wide range input 2:1
Efficiency up to 86%

Note

Operating temperature is without derating.
MTBF to MIL-HDBK 217F (+25°C).

Standards

IEC60601-1, CSA C22.2 601-1, CSA C22.2 No. 60950-1-03, UL 60601-1, UL 60950-1

Approvals

CB, CSA

RECOM DC-DC Converter, ±0.3% Line Regulation Rating, 83% Efficiency Rating - REC3.5 Series - REC3.5-2415DRW/R10/A

Plug into a reliable power supply with this RECOM DC-DC converter. Thanks to an output voltage accuracy of ±2%, it's a reliable way to switch your electrical supply to suit your equipment every time. By converting 83% of your input loads, the device cuts down on wasted energy to make the most of your system's power. You can mount the unit in no time thanks to its quick through-hole mounting method. Two outputs mean it's equipped to handle two circuits, keeping more of your hardware ticking over at once.

Features & Benefits

• Comes with integrated short-circuit protection, so it shuts down before power faults damage your system
• Insulating plastic and silicone housing limit your exposure to hazardous electrical loads
• Operates in temperatures between -40°C and +85°C, keeping components going in demanding environments

Applications

• Solar panels
• Manufacturing industry
• Industrial automation

What input voltages can I use this converter with?

You can use this product with input voltages between 18 and 36V, making it a handy tool for adjusting many common power supplies.

Datasheet
