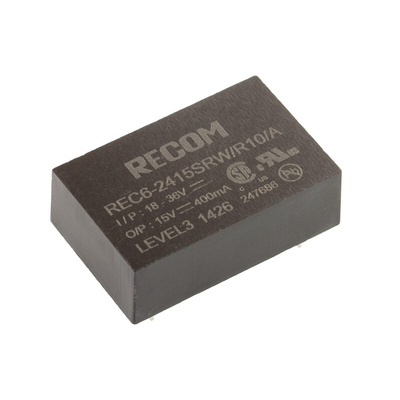

REC6-2415SRW/R10/A, Recom REC6 DC-DC Converter, 15V dc/ 400mA Output, 18 → 36 V dc Input, 6W, Through Hole, +75°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, Regulated Output, 0.6% Load Regulation - REC6 Series - REC6-2415SRW/R10/A

To make sure your electrical components stay cool and calm, pick this DC-DC converter from RECOM. It's compatible with an input voltage range from 18 to 36V DC and delivers a smooth 15V DC output. Continuous short-circuit protection limits potential damage from power faults, protecting downstream devices. This isolated unit also shields your input and output from energy fluctuations, thanks to an isolation voltage of up to 10kV. Don’t worry about getting your wires crossed – industry-standard pin-outs make installation a doddle.

Features & Benefits

• Medically approved for sensitive applications
• Delivers 140% rated power for short periods to handle start-up currents and larger loads
• Through-hole mounting ensures a safe and secure connection that withstands constant vibration
• Saves energy with an efficiency rating of up to 85%
• Streamlines your electrical supply with an output current of 400mA

Applications

• Food and beverage production
• Mechanical workshops
• Medical equipment

What temperature range can I use this unit in?

This converter’s safe to use in challenging industrial settings as it works reliably between -40°C and +75°C.

How big is this unit?

The converter’s dimensions are 10.2 (H) x 20.3 (W) x 32mm (L), which helps it fit neatly into crowded systems.
