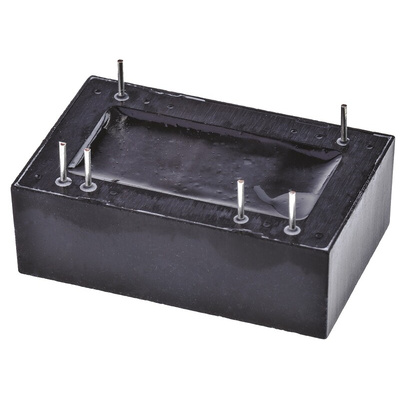

REC6-1212DRW/R10/A, Recom REC6 DC-DC Converter, ±12V dc/ ±250mA Output, 9 → 18 V dc Input, 6W, Through Hole, +75°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, 9 to 18V DC Input Voltage Range, 81 to 83% Efficiency - REC6/R Series - REC6-1212DRW/R10/A

Take charge of your system's power needs with this RECOM DC-DC converter. It adjusts input voltages between 9 and 18V DC to a steady output voltage of +12V DC, bridging the gap between your electrical source and equipment. Thanks to its output accuracy of ±2%, the reliable device gets your kit the power it needs. As it has two outputs, you can hook it up to a pair of circuits at once. Efficiency of 81 to 83% means this is a hard-working option that cuts back on energy waste to ensure optimal performance.

Features & Benefits

• Isolation voltage of 10kV DC for protection against powerful surges
• Compact dimensions of 30.2 (L) x 20.3 (W) x 10.2mm (D) to maximise packing space on your PCB
• Comes with continuous short-circuit protection to minimise the risk of electrical damage

Applications

• Power distribution systems
• Industrial robotics
• Electronics manufacturing

How do I mount this converter onto my board?

This component fixes to a PCB using through-hole mounting, so it's a cinch to create a secure and vibration-proof connection.
