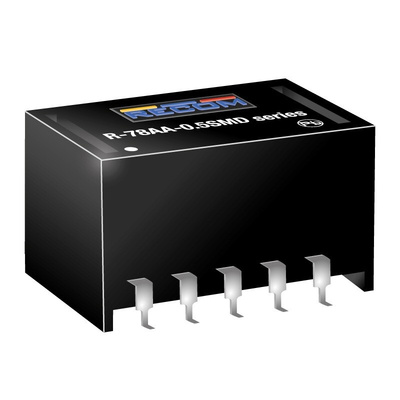

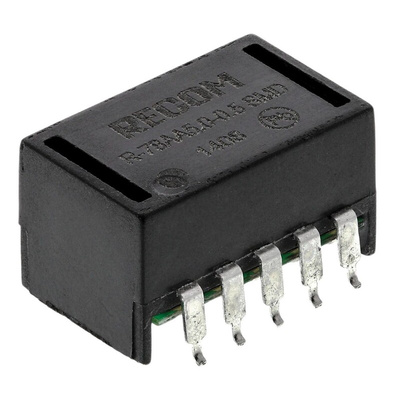

R-78AA5.0-0.5SMD, Recom Switching Regulator, Surface Mount, 5V dc Output Voltage, 6.5 → 32V dc Input Voltage, 500mA Output, Импульсные стабилизаторы

R78AAxx-0.5SMD Series

Replacement for R-78Axx-0.5SMD series
Non-isolated
High efficiency up to 97%
Adjustable output voltage
Wide input voltage range
Thermal shutdown and continuous short circuit protection
Remote On/Off control
UL94V-0 package material
SMD 10 pin package

Note

Derate output when operating temperature above +71°C.
MTBF to MIL-HDBK 217F (+25°C).
Stk numbers 706-3922 and 706-3957 have fixed output voltages.

Standards

EN-60950-1

RECOM Switching Regulator, 5V DC Output Voltage, Surface Mounting - R-78AA-0.5 Series - R-78AA5.0-0.5SMD

Need a stable power distribution device for the components on your PCB? Choose this switching regulator from RECOM. It accepts input voltages between 6.5 and 32V DC and steps them down to a steady output voltage of 5V DC for the reliable operation of your low-power devices. Thanks to its compact dimensions of 15.3 (L) x 9.6 (W) x 8.8mm (H), this s a practical choice for installation in crowded systems. Its plastic housing is resistant to impact and abrasion for durability in harsh environments. As this material is also non-conductive, it helps protect users against electric shocks.

Features & Benefits

• Mean time between failures of up to 29,253,000 hours at +25°C for reliability
• Wide operating temperature range between -40°C and +85°C for use in demanding conditions
• Light weight of 2.7g puts minimal strain on your board
• High efficiency of 86 to 94% for minimal power loss

Applications

• Aerospace industry
• Laptop and desktop computers

Is this switching regulator protected against electrical hazards?

Yes, this switching regulator features built-in short circuit protection to prevent damage in the event of a fault.
