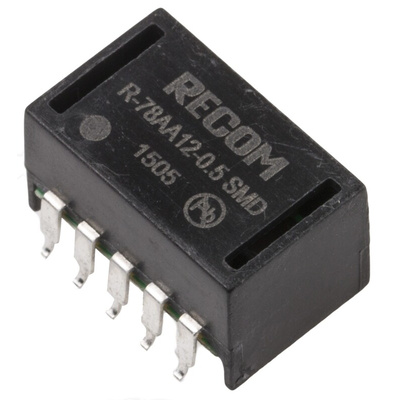

R-78AA12-0.5SMD, Recom Switching Regulator, Surface Mount, 12V dc Output Voltage, 15 → 32V dc Input Voltage, 500mA Output, Импульсные стабилизаторы

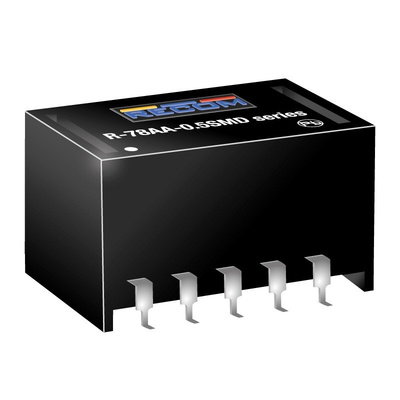

R78AAxx-0.5SMD Series

Replacement for R-78Axx-0.5SMD series
Non-isolated
High efficiency up to 97%
Adjustable output voltage
Wide input voltage range
Thermal shutdown and continuous short circuit protection
Remote On/Off control
UL94V-0 package material
SMD 10 pin package

Note

Derate output when operating temperature above +71°C.
MTBF to MIL-HDBK 217F (+25°C).
Stk numbers 706-3922 and 706-3957 have fixed output voltages.

Standards

EN-60950-1

RECOM Switching Regulator, 97% Maximum Efficiency, 40mV Maximum Ripple Voltage - R-78AA-0.5 Series - R-78AA12-0.5SMD

Flick over to fast power conversion with this RECOM switching regulator. It's a middleman that takes high inputs between 15 and 32V DC and delivers a steady 12V DC output to keep your components working smoothly. A start-up time of just 50ms means it switches your input voltages in a flash to efficiently power attached appliances. Integrated short-circuit protection automatically resets the unit after tripping to help your system bounce back from electrical faults. Don't worry about making space for a heatsink, as the regulator's 97% conversion efficiency keeps your equipment running cool.

• Surface mounting method for quick installation
• Compact dimensions of 15.3 (L) x 9.6 (W) x 8.8mm (D) mean it's easy to mount in crowded spaces
• Low power dissipation of 0.4W, so you get energy-efficient voltage conversion
• 33 units in a tube for convenient stocking

Applications

• Handheld electronic devices
• Power supply units
• Automotive industry

How accurate is the output voltage from this switching regulator?

This unit's output holds steady ±3% of your set value, so you can rest assured it gives you a precise power supply.

Datasheet

Application Note - Models For Distributed Power Architecture
