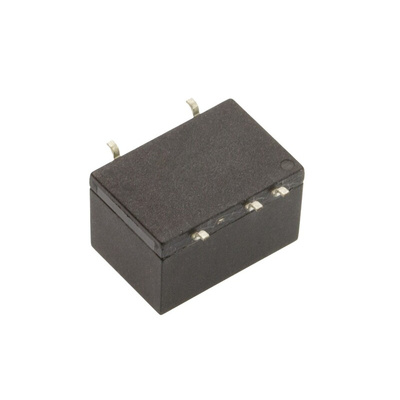

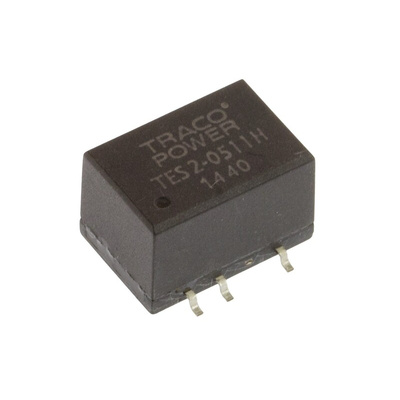

TES 2-0511H, TRACOPOWER TES 2H DC-DC Converter, 5V dc/ 400mA Output, 4.5 → 5.5 V dc Input, 2W, Surface Mount, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 1.5kV DC Isolation Voltage, 9.3mm Width - TES 2H Series - TES 2-0511H

Are stray signals interfering with your electronics? Power your circuits safely with this DC-DC converter from Traco Power. It provides a functional isolation of 1.5kV DC to separate the input and output. This boosts safety and breaks up ground loops. An internal capacitor on the input filters out ripple and noise to a maximum peak-to-peak of 120mVp-p, assuring you a consistent power supply. This means the unit's well-suited to digital interface and power distribution applications.

Features & Benefits

• Light weight of 1.5g to fit in portable devices
• Compact dimensions of 13.7 (L) x 9.3 (W) x 8.9mm (D) save you board space
• Short-circuit protection with automatic recovery slashes downtime
• Maximum start-up time of 50 milliseconds keeps your electronics running smoothly

Applications

• Industrial PLCs
• Computing equipment
• Telecommunications networks
• Control panels
• Electronics assembly

Is this DC-DC converter suitable for lead-free reflow soldering processes?

Yes. It functions reliably up to a maximum temperature of +90°C and has matte-tin pins to ensure it's suitable for lead-free reflow soldering. Thanks to the surface mounting design in a standard SMD8 package, it's widely compatible with automated assembly lines.
