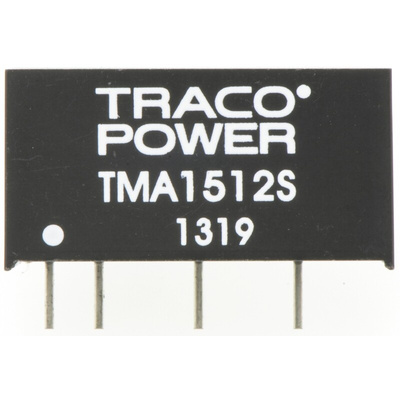

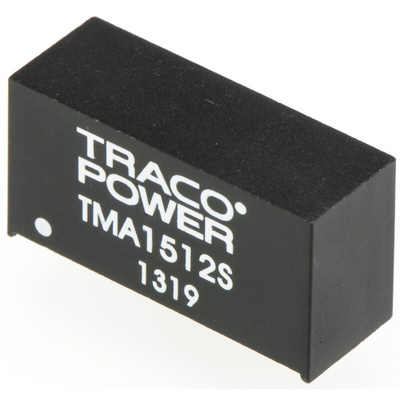

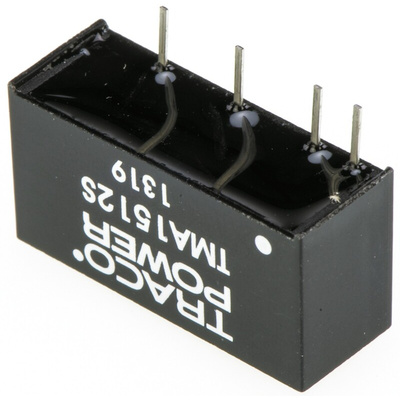

TMA 1512S, TRACOPOWER TMA DC-DC Converter, 12V dc/ 80mA Output, 13.5 → 16.5 V dc Input, 1W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, SIP-7 Format, 84mA Output Current - TMA Series - TMA 1512S

Cut loads down to size with this DC-DC converter from Traco Power. It steps 13.5 to 16.5V DC inputs down to a steady 12V output, reliably getting your components the energy they need. As it works at 79% efficiency, the device cuts back on wasted power and runs reliably cool. Securing it to a PCB is no trouble, thanks to its simple through-hole mounting method. The pinout follows industry standards to make identifying its connections a breeze.

Features & Benefits

• Narrow SIP-7 format means it fits neatly onto small circuit boards
• Supports input changes up to 1.5% to smooth out disruption from unstable supplies
• Low maximum ripple voltage of 75mV to reduce electrical noise
• Plastic insulation minimises user exposure to electrical loads

Applications

• Manufacturing industry
• Domestic appliances
• Server management

Is this converter protected against electrical faults?

Yes, it comes with short-circuit protection and shuts down as soon as power issues pop up to cut the risk of hardware damage.

Can I use the device in demanding environments?

A broad operating temperature range of -40°C to +85°C means it's safe to use in tough conditions.
