TEL 2-4821, TRACOPOWER TEL 2 DC-DC Converter, ±5V dc/ ±200mA Output, 36 → 75 V dc Input, 2W, Through Hole, +75°C Max Temp, Преобразователь

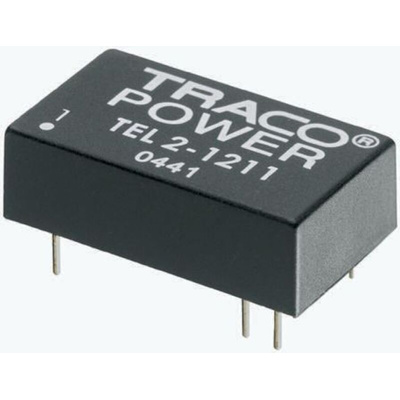

Traco 2W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEL-2 Series

The Traco Power TEL-2 series is a range of isolated, 2 Watt, DC-DC converters in a DIP-16 package. With their low profile these regulated converters require only 3.25 cm2 of space on the PCB providing a complete DC-DC converter without need of any external components. The TEL-2 series feature wide input range and tightly regulated output voltage, which qualifies these DC-DC converters for many cost critical applications in industrial and consumer electronics.

Ultracompact DIP-16 plastic package
Wide 2:1 input range
Regulated output
I/O isolation 1500V
Input filter meets EN55022, class A without ext. components
Low ripple and noise
Indefinite shortcircuit protection
Operating temperature range –40°C to +75°C (no derating)
Lead free design, RoHS compliant

Standards

UL/cUL 60950-1 , IEC/EN 60950-1

Approvals

CSA 60950-1-03 File no. 226037
