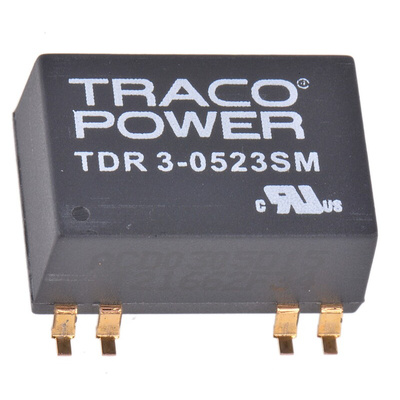

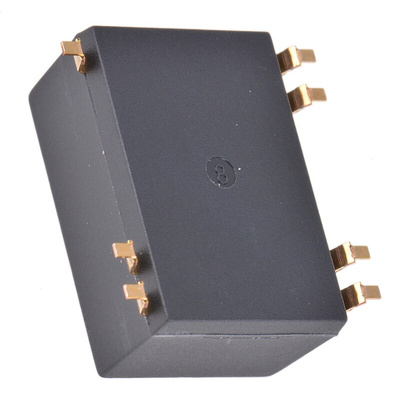

TDR 3-0523SM, TRACOPOWER TDR 3SM DC-DC Converter, ±15V dc/ ±100mA Output, 4.5 → 9 V dc Input, 3W, Surface Mount, +85°C Max, Преобразователь

Traco Power DC-DC Converter, SMD-14 Format, 81% Efficiency - TDR 3SM Series - TDR 3-0523SM

Looking to fit a compact power switching device to your PCB? Choose this DC-DC converter from Traco Power. A slim SMD-14 format means it slots easily onto busy PCBs, so it's a versatile option. By switching voltages between 4.5 and 9V DC down to ±15V DC, the unit bridges the gap between your mains supply and your component's demands. Thanks to a dual-output design, you can use it to support two appliances at once for efficient coverage. Thanks to integral short-circuit protection and auto recovery, the converter bounces back from faults to cut downtime out of the picture.

Features & Benefits

• Conversion efficiency of 81% to minimise energy waste
• Remote On/Off feature means switching is based on control signals, for handy management
• Ripple voltage of just 30mV to remove disruptive electrical noise
• Powers up in 5ms to skip through start-up
• Performs in temperatures between -40°C and +85°C for reliable switching in tough conditions

Applications

• Security systems
• Sensing instruments
• Industrial robotics

How do I fit this device to my circuit board?

By pushing the converter's pins through simply solders to your PCB, quickly achieving a secure connection to speed through system assembly.
