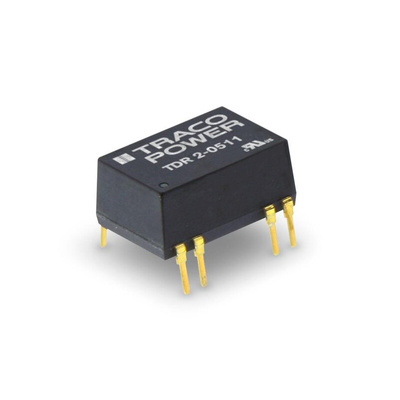

TDR 2-0511, TRACOPOWER TDR 2 DC-DC Converter, 5V dc/ 400mA Output, 4.5 → 9 V dc Input, 2W, Through Hole, +85°C Max Temp, Преобразователь

Traco 2W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TDR 2 Series

Compact design in DIP package
Wide 2:1 input voltage range
Fully regulated outputs
No minimum load required
I/O-isolation 1500 Vdc
Operating temperature range –40 °C to +85 °C without derating
Short circuit protection
Remote On/Off

Note

Suitable common mode chokes:
TDR 2-05xx : see stock number 745-1203
TDR 2-12xx : see stock number 745-1171
TDR 2-24xx : see stock number 745-1219
TDR 2-48xx : see stock number 745-1171

Traco Power TDR 2 Series DC-DC Converter, 80% Efficiency, Through Hole Mount - TDR 2-0511

This Traco Power DC-DC converter is a compact device designed for use in automation, electronics, electrical, and mechanical industries. With a wide input voltage range of 4.5V to 9V DC, and a fully regulated 5V output voltage, this converter offers high efficiency and isolation up to 1.5kV DC. The temperature range of 40°C to +85°C ensures reliable operation in various environments.

Features & Benefits

• Compact design for space critical applications
• Wide 2:1 input voltage range for flexibility in usage
• Fully regulated output for stable performance
• High efficiency of 80%
• Isolated design with 1.5kV DC isolation voltage
• Through hole mounting type for easy installation
• Low ripple and noise for clean power delivery
• No minimum load required for operation
• Temperature range of 40°C to +85°C without derating
• Remote On/Off control for added functionality
• Continuous short circuit protection for safety
• RoHS compliant for environmental friendliness

Applications

• Ideal for communication equipment
• Suitable for instrumentation applications
• Perfect for industrial electronics use

Can it operate in a temperature range from -40°C to +85°C?

Yes, it is designed to work within this temperature range without derating.

Will it provide a stable 5V output voltage?

Yes, the output voltage is fully regulated for consistent performance.

Is it suitable for high-end applications in communication equipment?

Yes, it is an ideal solution for space-critical high-end applications.

Can it work with a wide input voltage range?

Yes, it has a wide 2:1 input voltage range for flexibility.

Does it offer isolation up to 1.5kV DC?

Yes, it provides isolation voltage of 1.5kV DC for safety.
