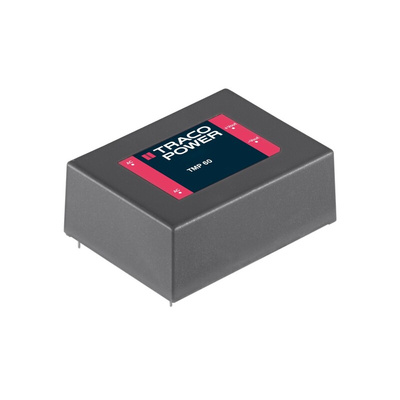

TRACOPOWER Switching Power Supply, TMP 60112, 12V dc, 5A, 60W, 1 Output, 120 → 370 V dc, 85 → 264 V ac, Источник питания

TRACOPOWER AC/DC Power Supply

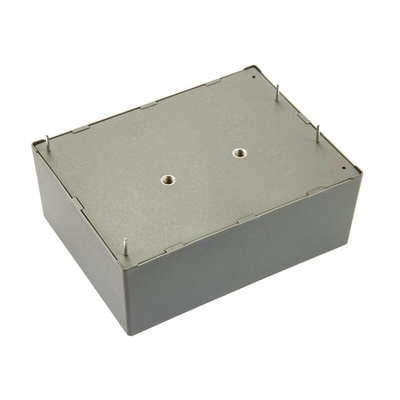

The TRACOPOWER TMP series 60W single output AC to DC embedded switch mode power supply has an output current rating of 5000mA at 12VDC. It has the universal input supply voltage ratings from 85VAC to 264VAC and 120VDC to 370VDC. The AC/DC power supply has PCB mounting with solder pins. This power supply offers a cost-effective solution.
Note:
Manufacturers’ part numbers with a 'C' suffix denote chassis mounting types
Multi-output models TMPM 042xx, TMP 1021x, TMP 1521x and TMP 3021x have a common ground. Other multi-output models have output 1 isolated from output 2/3 (floating)
Optional DIN-rail mounting adaptors for chassis mounting types (identified by a 'C' suffix within the manufacturer’s part number) available separately
De-rate by 3.5% per °C above 50°C for 'TMP 10' models
De-rate by 2.5% per °C above 40°C for other models
MTBF to MIL-HDBK-217F (25 °C)

Features and Benefits

Ultra compact and low profile design
Fully encapsulated offering protection against pollution and dust
Short circuit protection
Overload and over temperature protection
Input and output isolation is 3kVAC
Efficiency is 82%

Applications

Commercial
Industrial equipment

Certifications

Protection class II
EN 55022, level B
FCC Part 15 level B
CB recognised component for Canada and US
UL recognised component for Canada and US
