TRACOPOWER Switching Power Supply, TMP 60148C, 48V dc, 1.25A, 60W, 1 Output, 120 → 370 V dc, 85 → 264 V, Источник питания

Traco 4W to 60W Low Profile Encapsulated AC/DC Power Supply - TMP and TMPM Series

4W to 60W low profile AC/DC encapsulated power supplies with ultra-compact casings. These AC/DC encapsulated power modules have universal inputs and are available with single, dual or triple outputs. There are two mounting options for these AC/DC power supplies; PCB mounting with solder pins or chassis mount with a screw terminal block connection. Typical applications for these encapsulated AC/DC power supplies includes spcae critical applications within commercial and industrial equipment.

Ultra compact and low profile design
Universal 85-264Vac input
Fully encapsulated offering protection against pollution and dust
Short circuit, overload and over temperature protection
3kVac input / output isolation
Protection Class II
EM Ccompliance to EN 55022, level B, FCC Part 15 level B

Note

Manufacturers part numbers with a 'C' suffix denote chassis mounting types.
Multi output models TMPM 042xx, TMP 1021x, TMP 1521x and TMP 3021x have a common ground. Other multi output models have output 1 isolated from output 2/3 (floating)
Optional DIN-Rail mounting adaptors for chassis mounting types (identified by a 'C' suffix within the manufacturers pt no) available separately, see stk nos 666-2786 & 666-2780
De-rate by 3.5% per °C above 50°C. for 'TMP 10' models
De-rate by 2.5% per °C above 40°C. for other models
MTBF to MIL-HDBK-217F (25 °C).

Standards

IEC/EN 60950-1, UL 60950-1, UL/cUL 508 (chassis mount single and symetric dual output models only)

Approvals

CB, UL recognised component for Canada & US

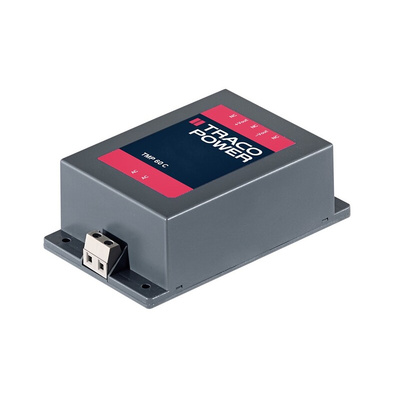

Traco Power Switching Power Supply, 1.25A Output Current, 48VDC Output Voltage - TMP 60148C

This Traco Power switching power supply is a high efficiency, encapsulated 60W power supply designed for various industrial applications. It provides a reliable and stable 48V DC output with outstanding efficiency for optimal performance in automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Ultra compact and low profile design
• Fully encapsulated for protection against pollution and dust
• Suitable for chassis mount with screw terminal block or direct PCB mounting with solder pins
• Universal input voltage range of 85-264 VAC or 120-370 VDC
• Compliance with international safety standards for industrial control equipment
• Over-temperature protection and protection against short circuit and overload

Applications

• Ideal for commercial and industrial electronic equipment
• Perfect for space-critical applications in environments with pollution and dust
• Suitable for use in automation systems, control panels, and industrial machinery

Can it be used in commercial electronic equipment?

Yes, this Traco Power switching power supply is ideal for various commercial electronic equipment due to its compact design and high efficiency.

Will it provide protection against short circuit and overload?

Yes, the power supply comes with built-in protection against short circuit and overload to ensure the safety of your equipment.

Can it be mounted on a DIN rail?

This specific model is designed for chassis mount with a screw terminal block, but Traco Power offers an optional DIN-rail mounting kit for other applications.

What is the input voltage range for this power supply?

The Traco Power TMP 60148C has a universal input voltage range of 85-264 VAC or 120-370 VDC, making it versatile for different setups.
