TRACOPOWER Switching Power Supply, TML 20115C, 15V dc, 1.34A, 20W, 1 Output, 100 → 375 V dc, 90 → 264 V, Источник питания

Traco Power Switching Power Supply, Plastic Resin and Fiberglass Casing Material, 0.25mA Maximum Leakage Current - TML-C Series - TML 20115C

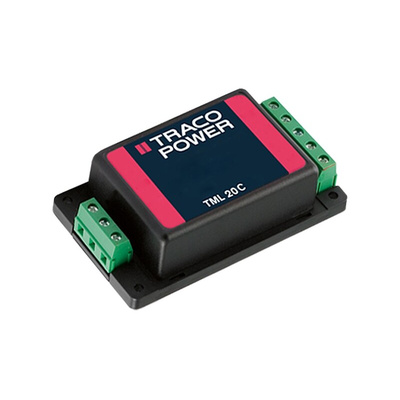

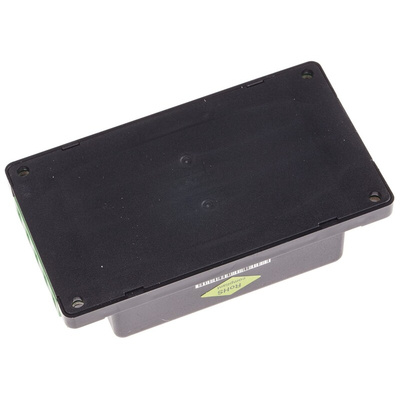

For AC to DC conversion from a compact package, choose this switching power supply from Traco Power. It takes an input voltage of between 90 and 264V AC and turns it into a steady 15V DC output. Dimensions of just 96 (L) x 54.6 (W) x 27.6mm (D) mean the device fits comfortably into crowded setups or portable equipment. For added protection, it's fully encapsulated to keep moisture, dust and other contaminants safely away from the delicate working parts. A hefty 20W output power rating means it's up to the task in a high-energy system. Thanks to a wide operating temperature range of -25°C to +70°C, this is a reliable choice for use in demanding conditions.

Features & Benefits

• Flame-retardant housing is self-extinguishing in under 10 seconds to help stop the spread of fire
• 3kV AC isolation voltage protects your equipment in the event of a fault
• Chassis-mounted for quick, easy and secure installation
• Light 155g weight won't strain your equipment

Applications

• Industrial automation
• Communications and IT networks
• Safety technology

How long will this product last?

A 200,000-hour mean time between failures means you can expect long-lasting performance from this hardy piece of kit.
