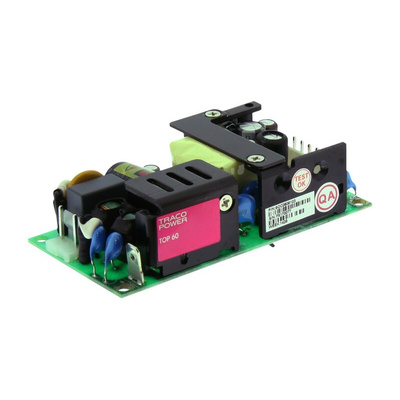

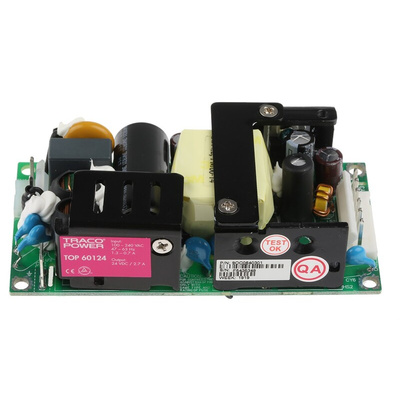

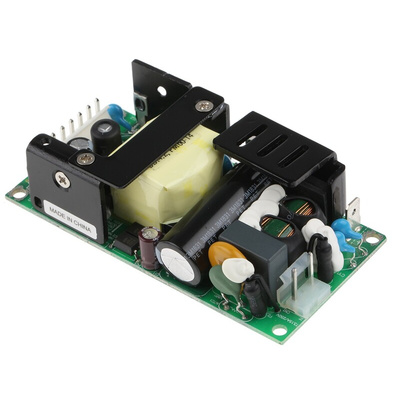

TRACOPOWER Switching Power Supply, TOP 60124, 24V dc, 2.7A, 64W, 1 Output, 110 → 370 V dc, 90 → 264 V ac, Источник питания

TRACOPOWER AC/DC Power Supply

The TRACOPOWER TOP-60 series 64W single output AC to DC embedded switch mode power supply has an output current rating of 2.7A at 24VDC. It has a universal input supply voltage rating from 90VAC to 264VAC and 110VDC to 370VDC. It has a small footprint. The series features up to 60W continuous output power for single, dual or triple outputs. The power supply has a typical high efficiency of 88% that allows operations up to 70°C with convection cooling.
Note:
Derates 2.5%/°C above +50°C.

Features and Benefits

• Input/ output isolation 4kVAC


• Low leakage current

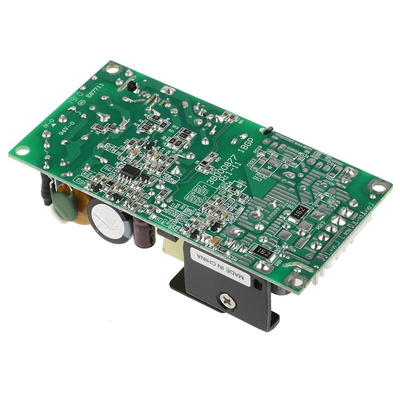

• Open frame power supply with 2in x 4in footprint


• Short circuit and overvoltage protection


• Small footprint

Applications

Industrial
IT application

Certifications

Protection class II
CB approved
EN 55022, level B
EN 60950-1
EN 61000-3-2
IEC 60950-1
TUV approved

Datasheet

Industrial Power Solutions Catalogue

Selection Guide
