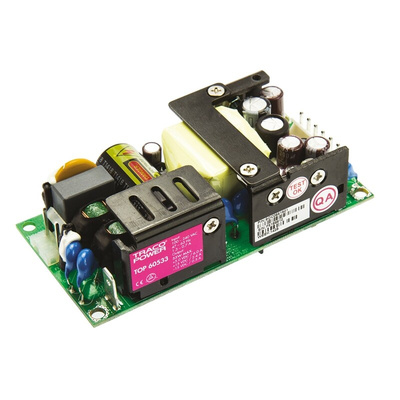

TRACOPOWER Switching Power Supply, TOP 60533, 5 V dc, ±15 V dc, 2.4 A, 6 A, 500 mA, 55W, Triple Output, 110 →, Источник питания

38W to 64W Universal Input, Single/Multi Output, 2x4inch, TOP Series

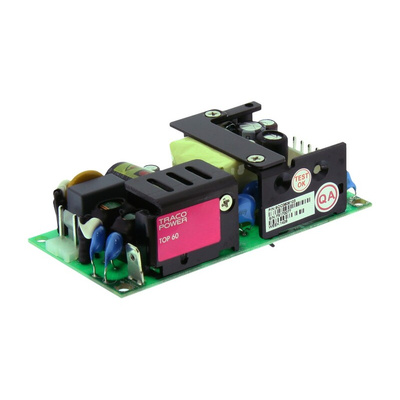

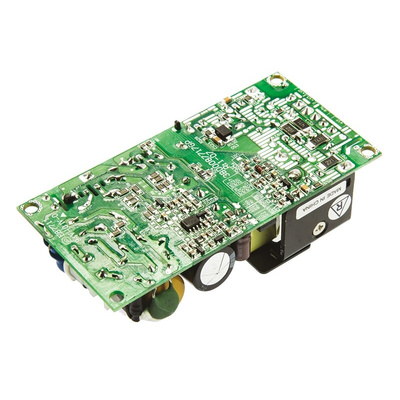

The Traco Power TOP-60 Series is a family of Open Frame AC/DC Power supplies. The TOP-60 series have a small footprint and it features up to 60W continuous output power and single, dual and triple outputs.
These Traco Power supplies have a typical high efficiency of 88% which allows operations up to 70°C with convection cooling. The TOP-60 series is ideal for industrial and IT applications

Open frame power supply with 2”x 4“ footprint
Low leakage current
4kVac input / output isolation
EMI filter meets EN 55022, level B
Compliance with EN 61000-3-2
Protection class II
Short circuit and over voltage protection
Input mating terminal: stk no. 679-4714, input mating housing: stk no. 679-5079
Output mating terminal: stk no. 679-4714, output mating housing: stk no. 679-5085

Note

Derates 2.5%/°C above +50°C.

Standards

EN 60950-1, IEC 60950-1

Approvals

CB, TUV
