TRACOPOWER Switching Power Supply, TXL 060-15S, 15V dc, 4A, 60W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

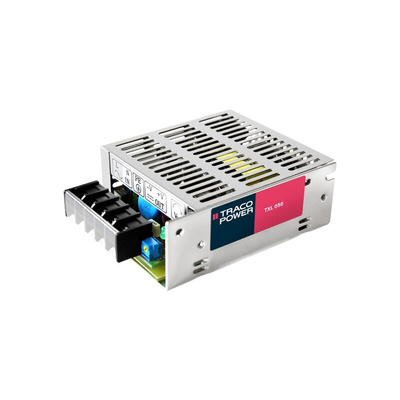

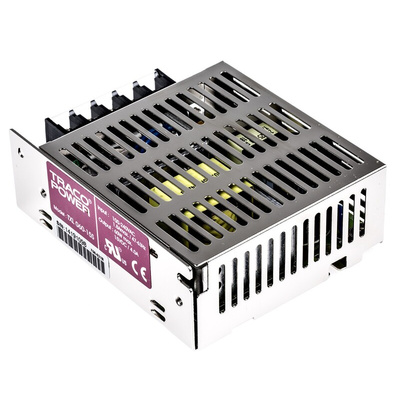

Traco Power Switching Power Supply, Chassis Mounting, 60W Power Rating - TXL 050/060Series - TXL 060-15S

To convert the voltage from an energy source, make the transition and install this Traco Power switching power supply. It takes inputs of 88 to 264V AC and converts them into a stable output of 15V DC and 4A, so you can run compatible appliances. A high efficiency of 83% tells you minimal electricity is lost as waste heat. At just 340g, the device is a lightweight option that keeps your setup free of unnecessary strain. Thanks to screw terminals, installation is a doddle.

Features & Benefits

• Mean time between failures of at least 335,000 hours, so you get long-term service
• Dimensions of 99 (L) x 35 (W) x 82mm (D) make good use of space in your setup
• Wide operating temperature range between -20°C and +70°C assures you it holds its own in tough environments
• Supports inputs of 125 to 375V DC for use with many standard power sources

Applications

• Home computing
• Audiovisual installations
• Medical technology

Can this SPS withstand voltage surges?

Yes. Both its input and output channels are tested up to 3000V AC, so you can rest assured that it withstands voltage surges.
