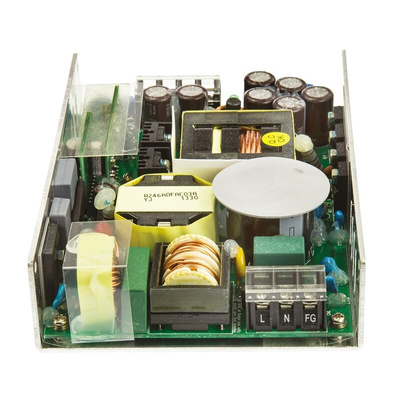

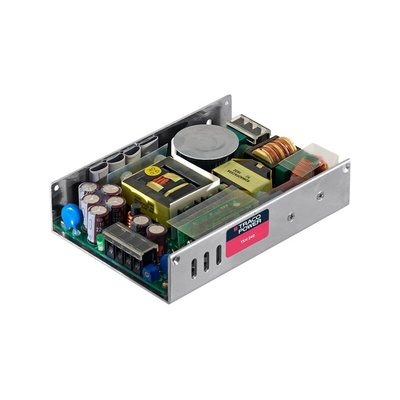

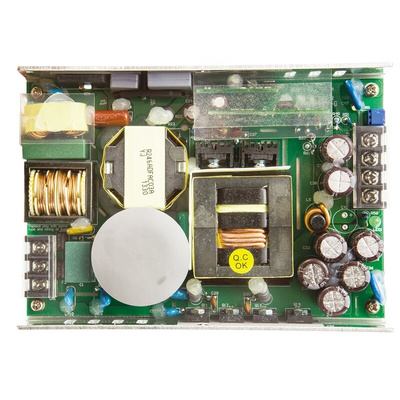

TRACOPOWER Switching Power Supply, TXH 240-148, 48V dc, 5A, 240W, 1 Output, 120 → 370 V dc, 90 → 264 V ac, Источник питания

120W to 480W, Universal Input, Single Output, TXH Series

The Traco Power TXH is a series of Power supplies in metal enclosure. The TXH is designed for a variety of cost critical applications. These Traco Power supplies have a metal case and screw terminal block connections, which make them easy to install. These Power supplies have a very high efficiency of up to 93% and a compact design. The TXH Power supplies have a universal input and they comply with European EMC standards and with the Low Voltage Directive (LVD).

Compact U-bracket and enclosed power supplies
Screw terminal block
Very high efficiency of up to 93%
Adjustable output voltage
EMI/EMC compliance with EN 61000-6-3 and EN 61000-6-1
Compliance to EN 61000-3-2 (PFC)
Short circuit and over voltage protection
3 years warranty

Note

Derates 4% per °C above 50°C.
MTBF to MIL-HDBK-217F (25°C).
Suitable cover kit for TXH 120 versions - stock number 745-1143
Suitable cover kit for TXH 240 versions - stock number 745-1152

Standards

UL 60950-1, IEC 60950-1, EN 60950-1

Approvals

CB, UL Recognised Component for Canada & US

TXH 240-148 Datasheet

Industrial Power Solutions Catalogue

Selection Guide
