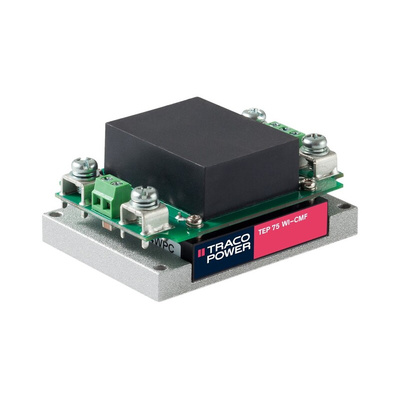

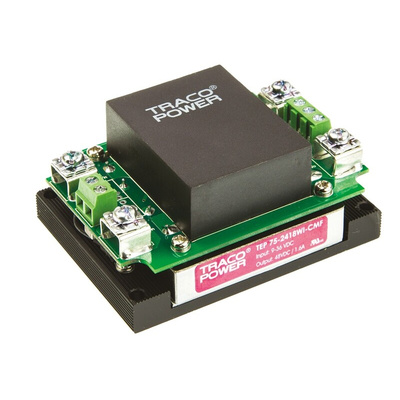

TEP 75-2418WI-CMF, TRACOPOWER TEP 75WI DC-DC Converter, 48V dc/ 1.6A Output, 9 → 36 V dc Input, 75W, Chassis Mount, +75°C Max Temp, Преобразователь

Traco 75W Single Output Regulated Isolated DC-DC Converter with Chassis Mount Adaptor and EMI Filter - TEP-75WI Series

75W single output regulated isolated high performance dc-dc converter modules in a rugged, sealed metal case. These DC-DC converter modules are chassis mount with a screw terminal block and input filter to meet EN 555022 class A. These dc-dc converters have a high efficiency allowing an operating temperature up to +60°C with natural convection cooling without power derating, output voltage trimming and remote On/Off. These DC-DC converters are ideal for use on industrial applications where PCB mounting is not possible.

Ultra wide 4:1 input voltage range
Chassis mount converter with screw terminal connections
Soft start
Full load operation up to 60°C with convection cooling
Remote On/Off
Output current limitation
Input protection filter
Under voltage lockout
Reverse input voltage protection
Over temperature, over voltage and short circuit protection

Note

MTBF to MIL-HDBK-217F (25°C)
Derate above 60°C
An optional DIN rail mounting kit is available - see stock number 745-1102

Standards

UL 60950-1, IEC 60950-1, EN 60950-1

TRACOPOWER 75W DC/DC Converter Module

TRACOPOWER TEP 75WIRCMF isolated chasis mount DC-DC converters with a wide 4:1 input voltage range of 9 to 36 V dc and 48 V dc adjustable output voltage at 180 W. High efficiency of up to 91% allows an operating temperature up to +60°C with natural convection cooling without power derating. These railway compliant isolated DC-DC converters have a screw terminal block and an integrated EMI filter to meet EN 55022 class A.

Features and Benefits

• Chasis mount case with screw terminals


• Ultra wide 4:1 input voltage range


• EN 50155 approval for railway applications


• Very high efficiency up to 91%


• Reverse input voltage protection


• Under voltage lock-out


• Full load operation up to +60°C with convection cooling

Traco - 75W to 240W - TEP Series

Datasheet

Industrial Power Solutions Catalogue

Railway Solutions Catalogue

Selection Guide
