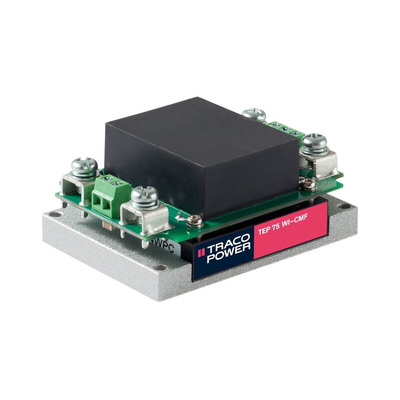

TEP 75-2416WI-CMF, TRACOPOWER TEP 75WI DC-DC Converter, 28V dc/ 2.7A Output, 9 → 36 V dc Input, 75W, Chassis Mount, +75°C Max Temp, Преобразователь

Traco 75W Single Output Regulated Isolated DC-DC Converter with Chassis Mount Adaptor and EMI Filter - TEP-75WI Series

75W single output regulated isolated high performance dc-dc converter modules in a rugged, sealed metal case. These DC-DC converter modules are chassis mount with a screw terminal block and input filter to meet EN 555022 class A. These dc-dc converters have a high efficiency allowing an operating temperature up to +60°C with natural convection cooling without power derating, output voltage trimming and remote On/Off. These DC-DC converters are ideal for use on industrial applications where PCB mounting is not possible.

Ultra wide 4:1 input voltage range
Chassis mount converter with screw terminal connections
Soft start
Full load operation up to 60°C with convection cooling
Remote On/Off
Output current limitation
Input protection filter
Under voltage lockout
Reverse input voltage protection
Over temperature, over voltage and short circuit protection

Note

MTBF to MIL-HDBK-217F (25°C)
Derate above 60°C
An optional DIN rail mounting kit is available - see stock number 745-1102

Standards

UL 60950-1, IEC 60950-1, EN 60950-1

Traco Power TEP 75WI Series DC-DC Converter, Isolated, Single Output - TEP 75-2416WI-CMF

This Traco Power DC-DC converter 75W with 28V output voltage, is a powerful and efficient converter designed for a wide range of applications. With its isolated design, high efficiency, and chassis mount capabilities, this converter ensures reliable performance in industrial settings while providing optimal thermal management.

Features & Benefits

• Isolated design for enhanced safety and protection
• Chassis mount for easy installation and efficient operation
• High efficiency ensures optimal power conversion with minimal losses
• Wide 4:1 input voltage range for versatility in various applications
• Output voltage of 28V dc for compatibility with a range of devices
• Enclosed package for added protection and durability
• 2.7A output current for consistent and reliable power delivery

Applications

• Ideal for automation systems requiring precise and stable power supply
• Suitable for use in Electrical equipment in harsh industrial environments
• Perfect for applications that demand high efficiency and reliability
• Designed for installation in mechanical systems that require durable power solutions

Can it be used in automation systems?

Yes, the Traco Power DC-DC converter 75W with 28V Output voltage is ideal for automation systems requiring stable power supply.

Will it perform well in harsh industrial environments?

Yes, this converter is designed to withstand harsh industrial conditions, providing reliable power conversion.

Is it suitable for mechanical systems that require durable power solutions?

Yes, it is perfect for mechanical systems needing reliable power delivery.
