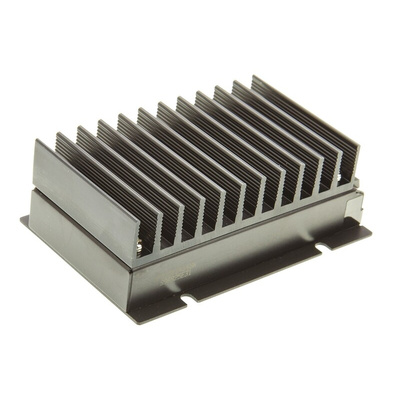

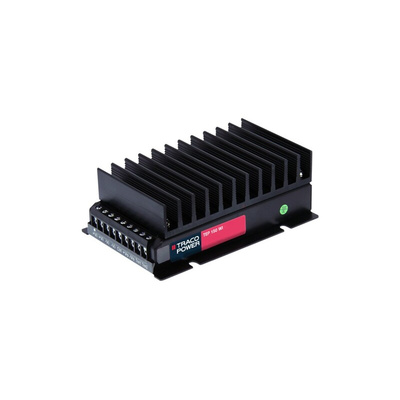

TEP 150-2418WI, TRACOPOWER TEP 150WI DC-DC Converter, 48V dc/ 3.2A Output, 9 → 36 V dc Input, 150W, Through Hole, +75°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 2600μF Capactive Load, 203 to 330kHz Switching Frequency - TEP 150WI Series - TEP 150-2418WI

Send stable power to your devices with this DC-DC converter from Traco Power. It delivers a reliable output of 48V DC from a broad input voltage range between 9 and 36V DC. A remote On/Off function lets you manage operations from afar, saving you legwork. Space-efficient dimensions of 98 (L) x 65 (W) x 34mm (D) mean it's a cinch to slot into your setup. This converter handles demanding applications, thanks to an inbuilt convection cooling feature that dissipates thermal energy. Through-hole mounting means you can count on a quick and secure connection.

Features & Benefits

• 86% typical efficiency means it saves energy
• Mean time between failure of 495,000 hours indicates a long lifespan
• Maximum ripple and noise of 300mVp-p for glitch-free performance
• IP55-rated housing means it's protected from dust and low-pressure water jets from all directions
• Performs in temperatures between -40°C and +75°C

Applications

• Industrial automation
• Railway equipment
• Telecommunications networks

What's meant by ripple and noise?

Ripple is undesirable variability in DC that results in waste such as heat, while noise refers to random fluctuations in voltage. If left unchecked, they can disrupt the efficiency of your devices.
