TRACOPOWER Switching Power Supply, TOP 200-148, 48V dc, 4.2A, 200W, 1 Output, 85 → 265V ac Input Voltage, Источник питания

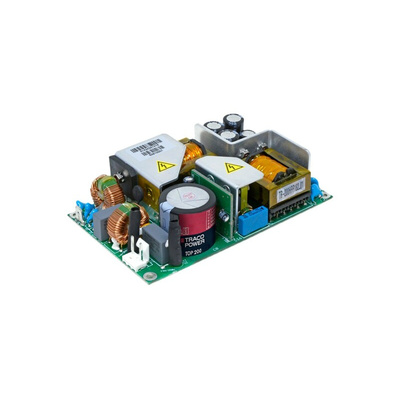

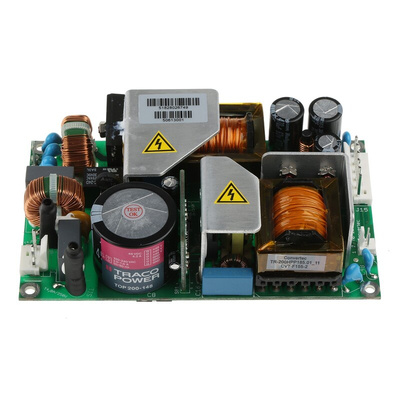

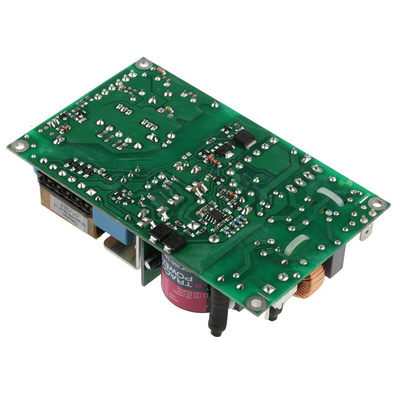

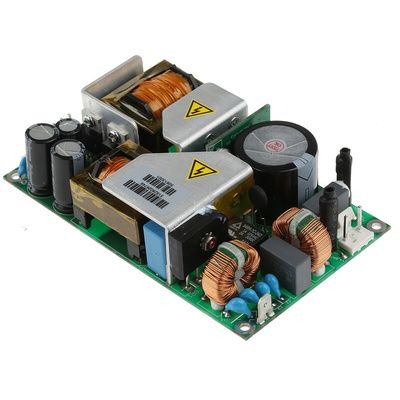

TRACOPOWER AC/DC Power Supply

The TRACOPOWER TOP-200 series 200W single output AC to DC embedded switch mode power supply has an output current rating of 4.2A at 48VDC. It has a universal input supply voltage rating from 120VAC to 240VAC. Its design provides extremely high efficiency of greater than 90% that eliminates the need for a dedicated power supply cooling fan. It provides high reliability because of its industrial quality grade components and excellent thermal management.
Note:
Derates 2%/°C above +50°C.

Features and Benefits

High efficiency
High power density with 5in x 3in footprint
Highest efficiency up to 95%
Low leakage current
Operating temperature ranges between of -25°C to 70°C
Overvoltage protection
Power back immunity

Applications

Commercial
Industrial electronic equipment
It system

Certifications

CB approved
CSA approved
EN 61000-3-2
IEC/EN 60950-1
Safety class I (class II with second fuse)
UL 60950-1
