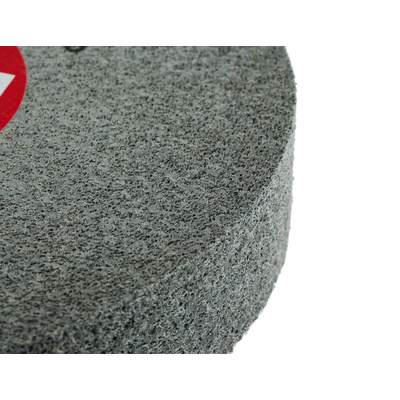

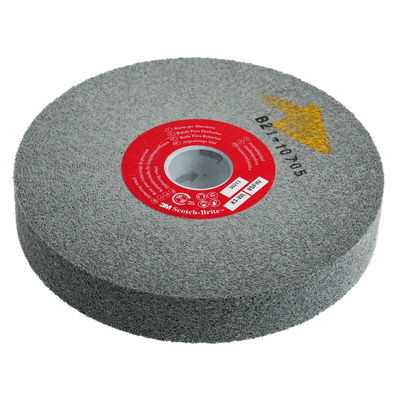

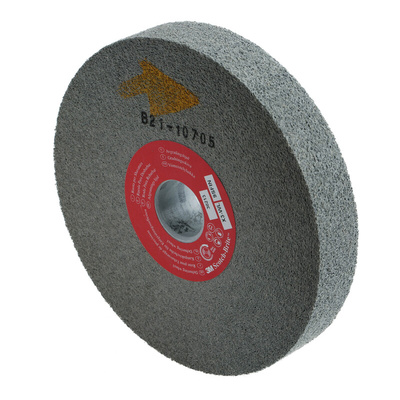

30213, 3M EX3 Scotch-Brite Silicon Carbide Deburring & Finishing Wheel, 150mm Diameter, Fine

Scotch-Brite™ EX3 Deburring Wheel X3-WL

Scotch-Brite™ EX3 Deburring Wheel is a convolute-constructed, hard, durable deburring wheel suited for applications where edge retention is a must. The wheel performs best when consistently presented with a sharp edge or metal burrs. A unique resin system resists smearing and heat buildup.

These wheels perform best when consistently presented with a sharp edge or metal burrs. Features a non-woven web that runs cool and lessens impact on heat sensitive materials. A unique resin system produces less smearing, reducing clean and prep time. They are available with silicon carbide or aluminium oxide abrasive mineral. Silicon carbide is a synthetic mineral that is very sharp and commonly used for low-pressure applications such as paint prep and finishing. Aluminium oxide is a hard, blocky mineral that provides high cut-rate and long life. While silicon carbide breaks down faster than aluminium oxide, it produces a finer finish Scotch-Brite abrasives are unique surface conditioning products with abrasives incorporated into a non-woven fibre matrix. Combining abrasives and non-woven material creates an abrasive system that delivers consistent results for the life of the product. The open-web material runs cool and is load resistant, which keeps the abrasive minerals cutting at high performance by limiting clogging of the fibres.

Features and Benefits

• Highest edge retention and durability in the Scotch-Brite™ Deburring Wheel line provides aggressive edge deburring
• Specially engineered to condition sharp edges and metal burrs
Convolute construction provides a balanced, smooth running wheel throughout product life
• Non-woven web runs cool and lessens impact on heat-sensitive materials
• Considerably longer life and improved performance over the standard
• EXL Deburring Wheel
• Fine grade
• Dimensions: 150 x 25 x 25.4mm

Applications

For use in a wide range of deburring applications and machine parts. Use Scotch-Brite™ EX3 Deburring Wheel to deburr, blend, finish and polish edges on glass, hard or soft composites and metals – including builder's hardware, medical instruments, metal fabrication, metal implants, plumbing fixtures and turbine engines. Due to its hard density, it is not recommended to use our EX3 for applications where conformability and finishing of flat surfaces are required.

Why choose 3M?

3M is a leading innovator of abrasive technologies, constantly evolving to provide ideal solutions to industrial and commercial applications. With 3M you can be assured of a wide selection of quality products.

3M Deburring and Finishing Wheel, 25.4mm Bore, 150mm Diameter - Scotch-Brite Series - 30213

Polish the edges of metal surfaces using this deburring and finishing wheel from 3M. The silicon-carbide abrasive material is extremely hard, allowing you to wear down sharp edges and remove burrs to leave a smooth finish on your workpiece. Thanks to its wide 150mm diameter, you can be sure it will have a good contact area with the surface for maximum efficiency. Attach this wheel to a grinding machine to polish hard metals, glass and composites.

• Bore size of 25.4mm for ease of mounting on a power tool• Resin bond resists smearing to reduce the need for cleaning and minimise preparation time• Fine grade provides precise cutting and finishing

Applications

• Construction industry• Mining and quarrying• Plumbing applications• Metalworks

Does this wheel produce a lot of heat?

This wheel features a non-woven web of fibre that's load-resistant, meaning it resists clogging caused by build-ups of the material that's removed from a surface. This helps to ensure a cool running temperature, giving you long-lasting performance and making it suitable for use on heat-sensitive surfaces.

Mops & Deburring/Finishing Wheels

Polishing mops for use with bench-mounted or hand-held machines which utilise a tapered spindle mounting.

Scotch-Brite EX3 Deburring Wheel X3-WL Data Sheet
