QPX600DP, Aim-TTi QPX Series Digital Bench Power Supply, 0 → 80V, 0 → 50A, 2-Output, 600W - UKAS Calibrated, Блок питания

Dual Output 1.2kW PowerFlex, 80V/50A Programmable DC Power Supply

The QPX600D and DP are dual output power supplies which offer two independent or tracking outputs of 600 watts each. The PowerFlex + design offers an extremely wide range of voltage/current combinations up to 80V and 50A on each output. Both versions include an analogue interface. The DP version includes USB, RS232 and LAN (Ethernet) with support for LXI.
For an optional GPIB module see stock number 144-5481.

Dual independent or tracking 600W outputs

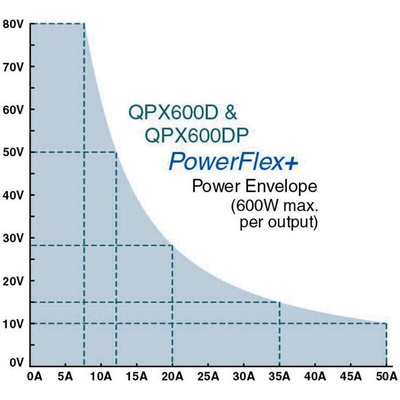

Ultra-wide range of voltage/current combinations
Up to 80V and up to 50A within each power envelope
Isolated tracking of voltage only, or voltage and current
Smart metering and tracking functions facilitate series or parallel wiring for up to 160V or 100A
Low output noise and ripple - fast transient response
High setting resolution of 1mV
Variable OVP and OCP trips
Analog control interfaces for voltage and current

RS-232, USB and LAN (LXI) interfaces

Standards

EN 61010-1, EN61326

Supplied with

User manual, mains lead and CD containing driver software

Aim-TTi Programmable DC Bench Power Supply

The Aim-TTi 600W rated programmable DC bench power supply with RS calibration has 2 outputs. The output voltage rating ranges between 0V and 80V and the current rating ranges between 0A and 50A. The power supply offers a clean power, excellent regulation, and fast transient response.
Inclusions:
User manual, mains lead and a CD containing driver software.
For an optional GPIB module see stock number 144-5481.

Features and Benefits

Analogue control interfaces for voltage and current
RS-232, USB and LAN (LXI) interfaces
High setting resolution of 1mV
Isolated tracking of voltage only, or voltage and current
Low output noise and ripple for a fast transient response
Smart metering and tracking functions facilitate a series or parallel wiring
Ultra-wide range of voltage/current combinations
Variable over voltage protection (OVP) and over current protection (OCP) trips
LCD graphic display for clarity and ease of use

Applications

Production testing
QA verifications
R&D design verification

Certifications

EN61010-01 (safety)
EN61326 (EMC)

Supplied with
type":"Supplied with",

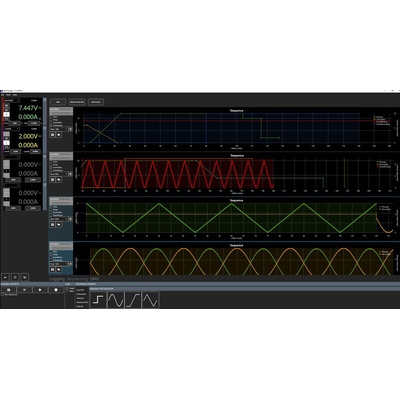

Test Bridge Logging and sequencing software

• Multi instrument control


• Logging to table and graph format


• Timed sequence control across all instruments and channels


• USB, LAN and RS232 compatible
