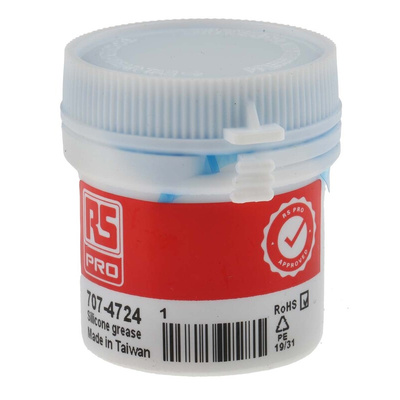

RS PRO Silicone Thermal Grease, 3.6W/m·K, Термопаста

Silicone Grease - RS Series

This silicone heat sink paste has a self-life of 18 months from the date of manufacture when stored in the original, unopened container at or below 25°C. Applications include: electronic components e.g. IC, CPU, MOS, LED, M/B, P/S, LCD-TV, Notebook PC, telecom device, wireless hub; DDRII module; DVD applications; hand-set applications.

Good thermal conductivity
Easy to use
High stability
Does not harden with time
Weight loss <0.5%
Specific gravity 2.3g/cm³
Working temperature -40 to +180°C
Volume resistance >10¹² ohm-cm
Package size 80x80x40mm
Jar contents 30g

Silicone Grease

This general purpose heat sink silicone grease from RS Pro can be used across a number of applications and within a wide operating temperature range.

The compound is a thermal conductive and has a shelf life of 18 months from the date of manufacture when stored unopened or below 25°C. The thermal paste or CPU grease works by acting as an interface between the two heat sources. The thermal grease fills in all those minuscule imperfections, ensuring the maximum heat transfer between the CPU and heat-sink before cooling.

Applications

Electronic components e.g. IC, CPU, MOS, LED, M/B, P/S, LCD-TV, Notebook PC, telecom device, wireless hub; DDRII module; DVD applications; hand-set applications.

Features and Benefits

• 30g jar
• Good thermal conductor even at high temperatures
• Does not harden with time
• Easy to use
• 18 month shelf life when stored correctly

RS Pro Datasheet

S606 Silicone Thermal Grease (EN - SDS)
